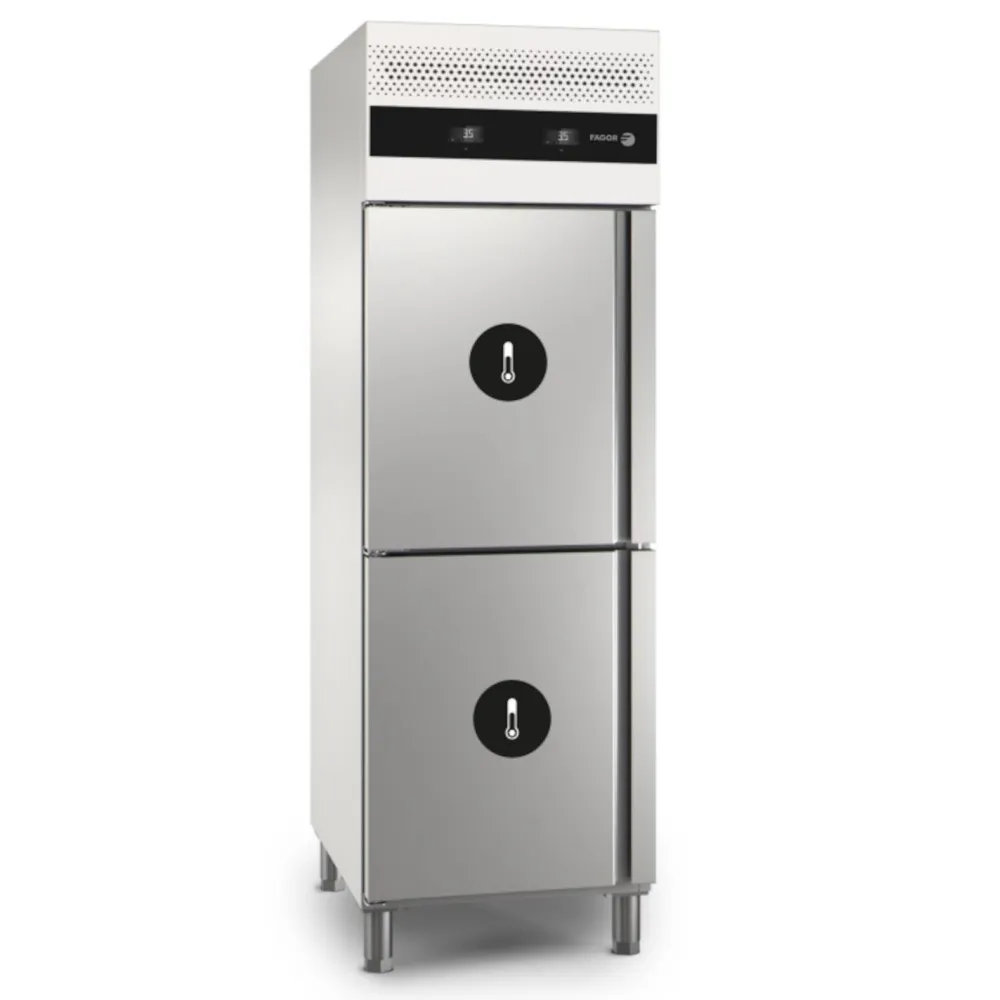

FAGOR CUD-12G/2 Combined Refrigerator for GN 2/1 Trays

A combined refrigerator keeps two separate temperature zones in one cabinet, each cooled by its own evaporator and fan. The refrigerant circulates through the system, absorbing heat from the stored food and releasing it outside. Off-cycle defrost stops the compressor periodically, letting the evaporator warm just enough to melt any frost without manual intervention. This method keeps the interior frost-free while reducing energy spikes and operator workload.

The unit has two doors, each opening to an independent compartment. The operator loads GN 2/1 trays or loose product onto the three epoxy-coated shelves, sets the desired temperature between 0 and 8 °C on the electronic control panel, and closes the door. The forced-air system distributes cold air evenly across every shelf, maintaining the set temperature regardless of how often the door is opened. LED lighting switches on when the door opens, showing the contents clearly. The compressor cycles on and off automatically, with the off periods serving as the defrost phase.

The cabinet is built from stainless steel inside and out, with 50 mm of insulation between the walls. Three removable epoxy-coated shelves support up to 40 kg each and slide on integrated rails. The legs adjust from 130 mm to 200 mm to level the unit on uneven floors. A 220–240 V single-phase 50 Hz supply powers the compressor and electronics.

A 596 L volume provides space for approximately thirty GN 2/1 trays, depending on how they are stacked. The 0.619 kW cooling power determines the rate at which the unit can pull heat from the stored food and must be matched to the ambient temperature of the kitchen. The 150 kg weight requires two people or a trolley to move the refrigerator into position. The 693 mm width, 826 mm depth and 2008 mm height set the footprint on the kitchen floor and the clearance needed for door swing and ventilation.

Cleaning involves wiping the stainless-steel interior and exterior with a damp cloth and mild detergent, removing the shelves to wash them separately. The off-cycle defrost eliminates the need to manually defrost the evaporator coils. The refrigerant R290 is pre-charged and sealed; no topping-up is required during normal use.

The 60 Hz version is available as an alternative, with a different refrigerant charge and a separate article number.
