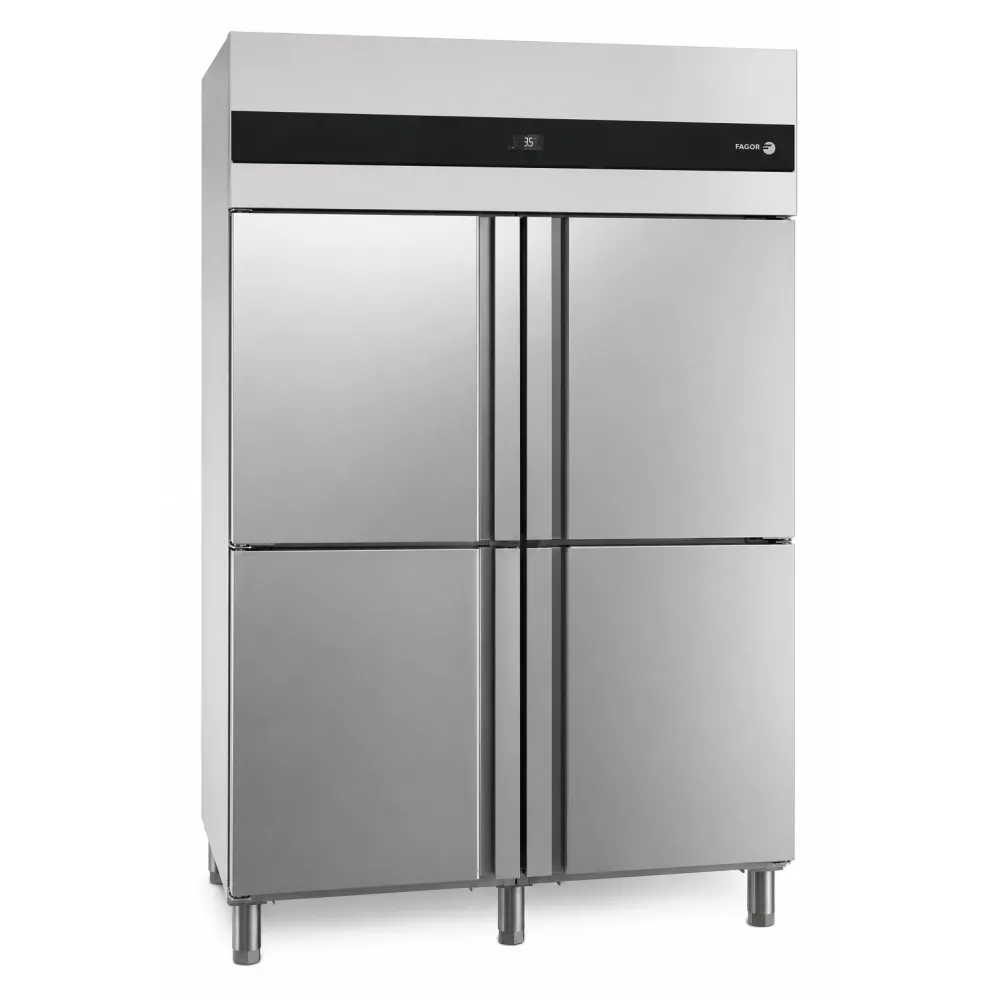

FAGOR CUP-24G 1186 L Off-Cycle Defrost Refrigerator for GN 2/1 Trays

A professional refrigerator built to hold gastronorm 2/1 trays in busy kitchens. The off-cycle defrost system stops the compressor at intervals, letting any frost on the evaporator melt naturally. The water drains away and evaporates without manual intervention, so the cabinet stays frost-free and the stored food remains at a steady temperature. This method avoids the sharp temperature swings of electric defrost, keeping the load stable and cutting energy spikes during service.

The unit cools by circulating cold air with a fan. The fan draws air over the evaporator coil, lowering its temperature, then pushes it evenly through the cabinet. Because the air moves constantly, every shelf receives the same chill, and the temperature stays within the 0 to 8 °C range set on the control panel. The fan also speeds up recovery after the doors are opened, so the cabinet returns to the target temperature quickly even when trays are loaded or removed frequently.

To use the refrigerator, the operator sets the desired temperature on the digital display. The cabinet cools automatically, and the LED lighting inside switches on when any door is opened, showing the contents clearly. Six removable epoxy-coated shelves accept GN 2/1 trays; each shelf can carry up to 40 kg and can be adjusted in 55 mm steps to fit different tray heights. The doors open to 120° and stay in place, or close automatically if opened less than 90° to keep cold air inside.

The cabinet is built from AISI 304 stainless steel inside and out, with rounded internal corners and an integrated drainage channel that collects any condensation or defrost water and directs it to an evaporation tray. The 60 mm polyurethane insulation reduces heat gain, so the compressor runs less often and the temperature remains stable. Four doors with magnetic seals and ergonomic handles give access to the full 1186 L volume without letting warm air enter. Adjustable stainless-steel legs allow the unit to be levelled on uneven floors and make it easier to clean underneath.

A 0.436 kW cooling power rating shows the load the refrigerator places on the electrical supply. The 220–240 V single-phase connection matches the standard circuit in a professional kitchen. The 300 kg weight means the unit is moved with a pallet truck or forklift, not by hand. The 1318 × 842 × 2040 mm footprint takes a fixed space on the worktop line, so the kitchen layout must allow for the full depth and height when the doors are open.

Cleaning is straightforward: the shelves lift out, the rounded corners and drainage channel prevent water pooling, and the stainless-steel surfaces wipe clean. The off-cycle defrost system removes the need for manual defrosting, so the cabinet can stay in service without interruption. A 60 Hz version is also available, adding a small surcharge.
