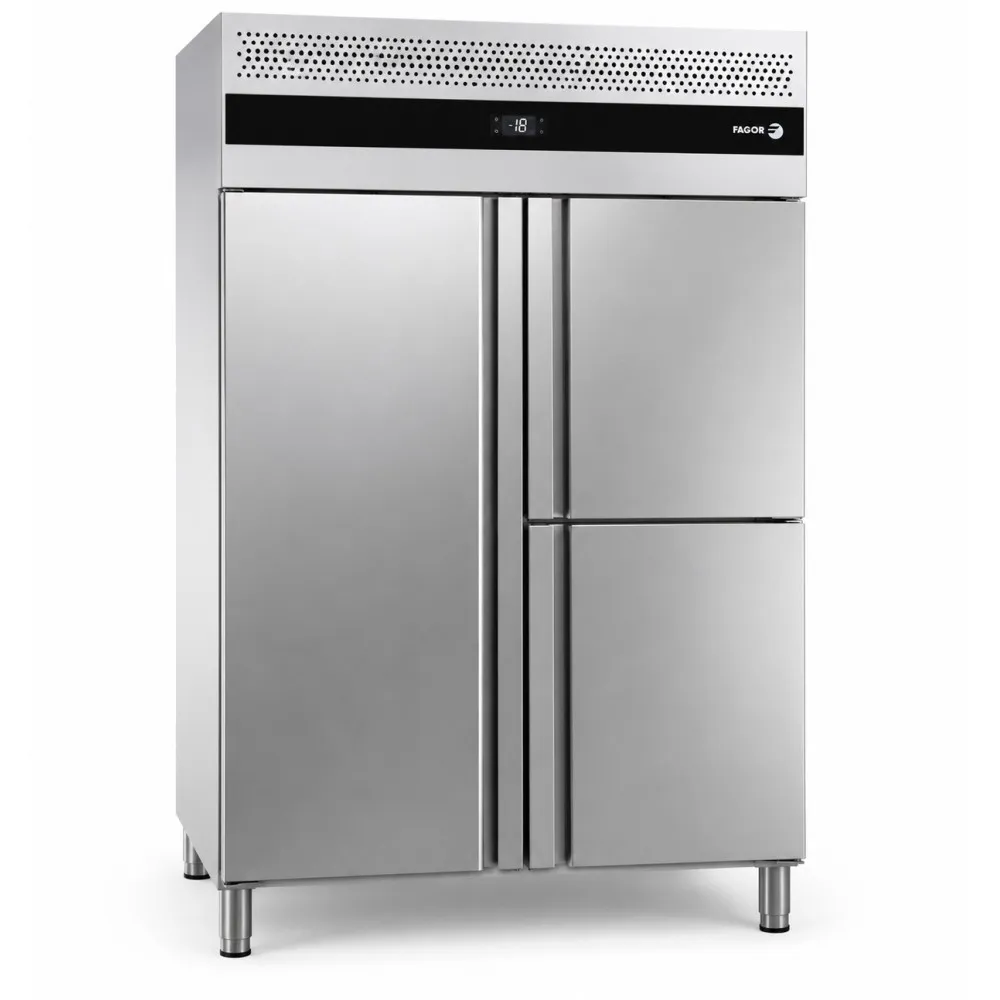

FAGOR Monoblock Electric Freezer GN 2/1 1144 Litre MUN-23G

A monoblock refrigeration system removes heat from the cabinet without external pipes or condensers, keeping the entire cooling circuit inside the unit. This design eliminates the need for separate installation work, allowing the freezer to stand against a wall or in a tight corner while still delivering consistent low temperatures. The sealed system circulates refrigerant through an evaporator coil, pulling warmth from the air inside and expelling it at the rear, where a fan disperses it into the room. Because the heat exchange happens in one compact assembly, the freezer maintains stable conditions even during heavy use, making it suited to kitchens where doors open frequently and new stock is added throughout service.

The operator loads trays or containers onto the adjustable shelves, then closes the three doors to seal the cabinet. An electronic control panel on the front sets the target temperature between -18 °C and -22 °C, while a digital display shows the current reading. Once the freezer reaches the set point, the system cycles automatically, using forced-air circulation to keep every shelf at the same temperature. If frost builds up on the evaporator, an electric defrost programme activates without manual intervention, melting the ice and draining the water away. LED lighting inside the cabinet illuminates the contents whenever a door is opened, and an integrated HACCP monitoring system logs temperature data for compliance records.

The cabinet is built from stainless steel inside and out, resisting corrosion and allowing quick wipe-downs between services. Six removable shelves coated in epoxy support gastronorm 2/1 trays, and the shelf rails offer 23 adjustable positions at 60 mm intervals, so the interior can be reconfigured for taller items or bulk storage. The doors have ergonomic handles and close tightly to minimise cold loss, while adjustable legs level the unit on uneven floors and raise it for cleaning underneath.

A cooling power of 0.735 kW indicates the rate at which the system can remove heat from the cabinet, determining how quickly the freezer recovers after new stock is added. The 1144 litre volume provides space for large quantities of frozen goods, while the 270 kg weight reflects the robust construction and the need for a solid floor or reinforced worktop. The 1318 mm width, 796 mm depth and 1996 mm height define the footprint, requiring a dedicated area with clearance at the rear for airflow. The -18 °C to -22 °C temperature range ensures compliance with food safety standards for frozen storage, and the E energy efficiency class shows the unit balances performance with electricity consumption.

Cleaning involves removing the shelves to wash them separately, wiping down the interior surfaces with a mild detergent, and checking the drain hole at the base of the cabinet to ensure it remains clear. The monoblock refrigeration unit at the top of the cabinet can be accessed by removing a panel, allowing technicians to service the compressor and fan without moving the entire freezer.

The freezer is available with R290 refrigerant as standard, with an alternative refrigerant version available under a separate article number. Both models include the same 6 GN 2/1 epoxy-coated shelves and stainless steel construction.

This model is listed in the professional refrigeration section of the catalogue, under monoblock freezers for gastronorm-compatible storage.
