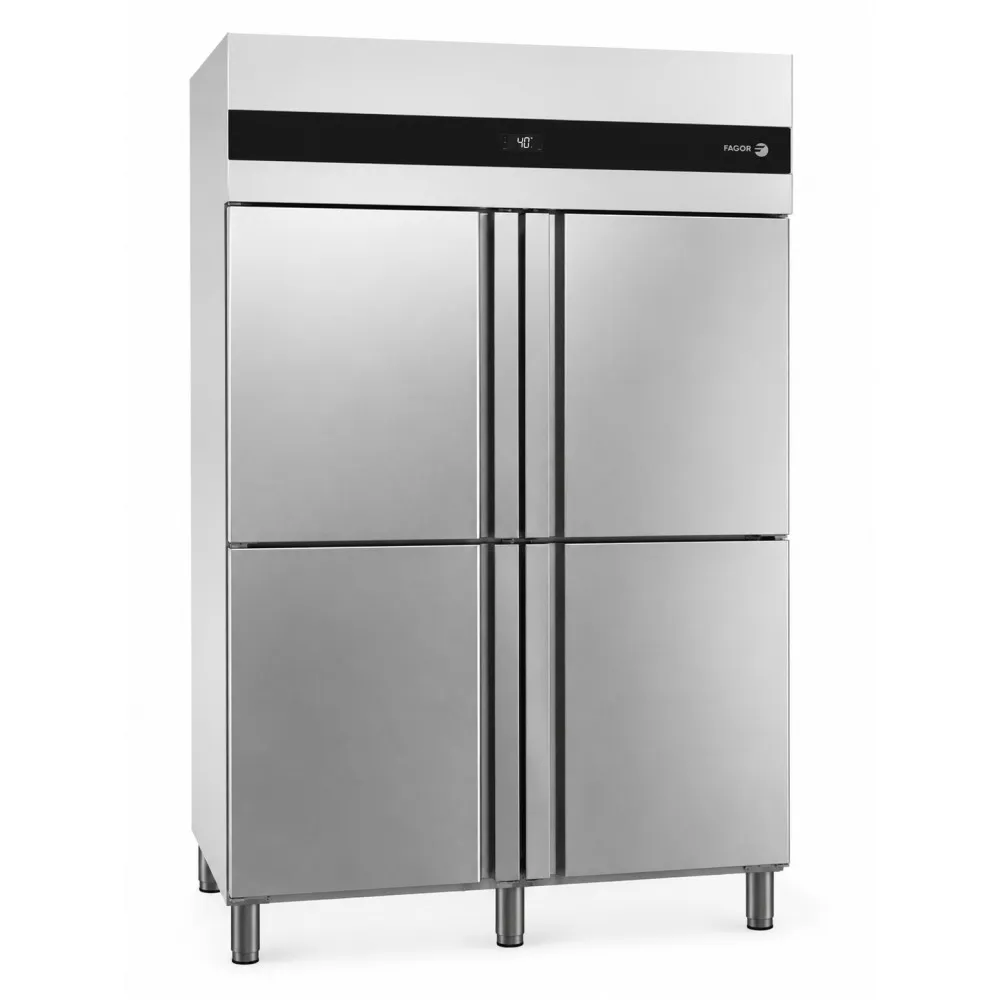

FAGOR MONOBLOCK GN 2/1 Refrigerator with Off-Cycle Defrost

A professional refrigerator built for high-volume kitchens, designed to hold gastronorm trays in a stable, chilled environment. The off-cycle defrost system removes ice by temporarily stopping the compressor, eliminating the need for heating elements and reducing energy spikes. This method keeps the cabinet at a steady temperature without interrupting storage, ensuring food remains safely chilled while frost is cleared naturally during the compressor's rest periods.

The unit cools by circulating air through a monoblock refrigeration system mounted at the top, freeing the sides and back for full-height storage. A fan draws air across the evaporator, then distributes it evenly throughout the cabinet, preventing hot spots and maintaining a consistent 0 to 8 °C range. The refrigerant, R600a, absorbs heat from the air as it evaporates, then releases it outside the cabinet when compressed, completing the cycle without moving parts inside the storage space.

Loading begins by opening one of the four doors, each fitted with an ergonomic handle. Inside, six removable epoxy-coated shelves accept GN 2/1 trays, while adjustable rails offer 23 height positions at 60 mm intervals, allowing the operator to reconfigure the interior for taller items or additional trays. The digital control panel on the front sets the target temperature, which the display confirms, and an integrated HACCP monitoring system logs temperature data for compliance records. LED lighting illuminates the entire cabinet, making it easy to locate items without opening doors unnecessarily.

The cabinet is constructed from stainless steel, inside and out, chosen for its resistance to corrosion and ease of cleaning in a busy kitchen. A 60 mm layer of insulation surrounds the storage area, reducing heat transfer and keeping the compressor from overworking. The monoblock refrigeration unit is positioned for easy access, simplifying maintenance and defrosting, while the entire unit stands on adjustable legs that can be set between 130 mm and 200 mm to level the refrigerator on uneven floors.

With a footprint of 1318 mm by 796 mm and a height of 1996 mm, the refrigerator occupies a fixed space in the kitchen layout, requiring clearance for door swing and ventilation. The 270 kg weight means it is moved with a pallet truck or forklift, not by hand. The 0.436 kW cooling power indicates the load it places on the electrical circuit, while the C energy efficiency class reflects its annual consumption of around 756 kWh, balancing performance with operating costs.

Cleaning involves removing the shelves and wiping down the interior with a damp cloth, then replacing the shelves once dry. The exterior is cleaned with a stainless steel cleaner to maintain hygiene and appearance. The monoblock design simplifies servicing, as the refrigeration components are contained in a single unit that can be accessed without dismantling the cabinet.

The refrigerator is supplied with six GN 2/1 epoxy-coated shelves, and the R600a refrigerant is available as a separate article for replacement. The unit is categorised under professional refrigeration for gastronorm-compatible storage.
