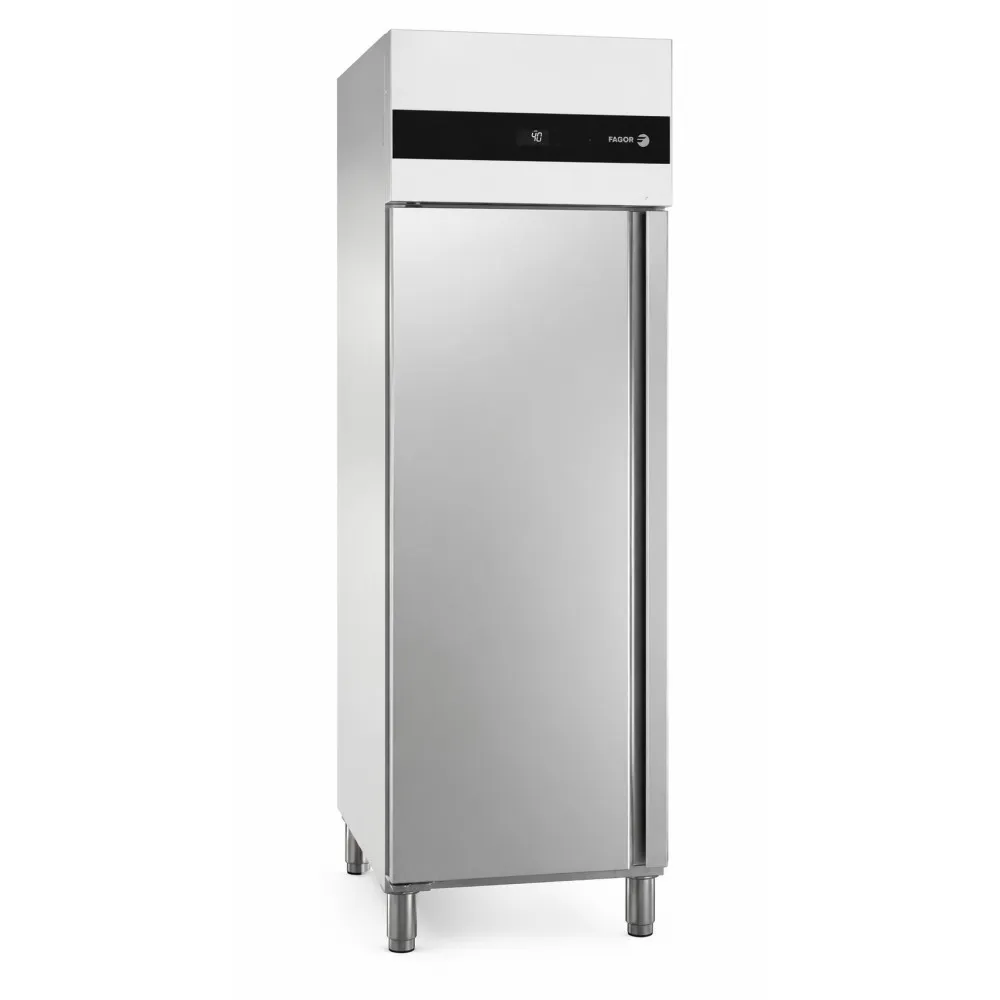

FAGOR Monoblock Refrigerator MUP-11G with Off-Cycle Defrost

This monoblock refrigerator combines the compressor and evaporator in one sealed unit, removing the need for external pipes. The design speeds up installation and lowers the risk of refrigerant leaks. Off-cycle defrost halts the compressor at intervals, allowing the evaporator to defrost naturally without added heat, which prevents ice accumulation and supports steady cooling in high-demand kitchens.

Chilled air circulates through a forced-air system, spreading cold evenly across all shelves. This airflow keeps the temperature stable between 0 and +8 °C, protecting ingredients from freezing. An electronic control panel with a digital display enables accurate temperature settings, while an integrated HACCP system tracks conditions to comply with food safety regulations.

The three removable epoxy-coated shelves adjust to 23 positions, each spaced 60 mm apart, and fit GN 2/1 gastronorm trays. This flexibility allows staff to arrange ingredients efficiently. Interior LED lighting ensures visibility, even with frequent door openings. An ergonomic handle and adjustable legs—settable between 130 and 200 mm—make positioning straightforward on uneven floors and simplify cleaning underneath.

The cabinet is built entirely from stainless steel, offering corrosion resistance and easy cleaning. A 60 mm layer of insulation reduces cold loss, helping maintain temperature and cut energy use. The monoblock cooling system is designed for easy maintenance, with the evaporator accessible from the rear for servicing without dismantling the unit.

The refrigerator's cooling power of 0.274 kW suits commercial kitchen electrical supplies. Its 572-litre capacity provides substantial storage for bulk ingredients, while the 130 kg weight requires a stable floor and at least two people for safe movement. The dimensions—653 mm wide, 796 mm deep, and 1996 mm high—fit standard worktop spaces or standalone placement in prep areas.

Cleaning involves wiping stainless steel surfaces with a damp cloth and mild detergent, while removable shelves can be washed separately. The forced-air system should be checked regularly to ensure clear airflow, and door seals inspected for damage to prevent cold loss. The off-cycle defrost system operates automatically, but the evaporator should be cleared of debris during routine checks.

The MUP-11G offers a refrigerant option of R600a/R290 for 60 Hz power supply. It holds a B energy efficiency rating, balancing performance and electricity use in continuous operation.
