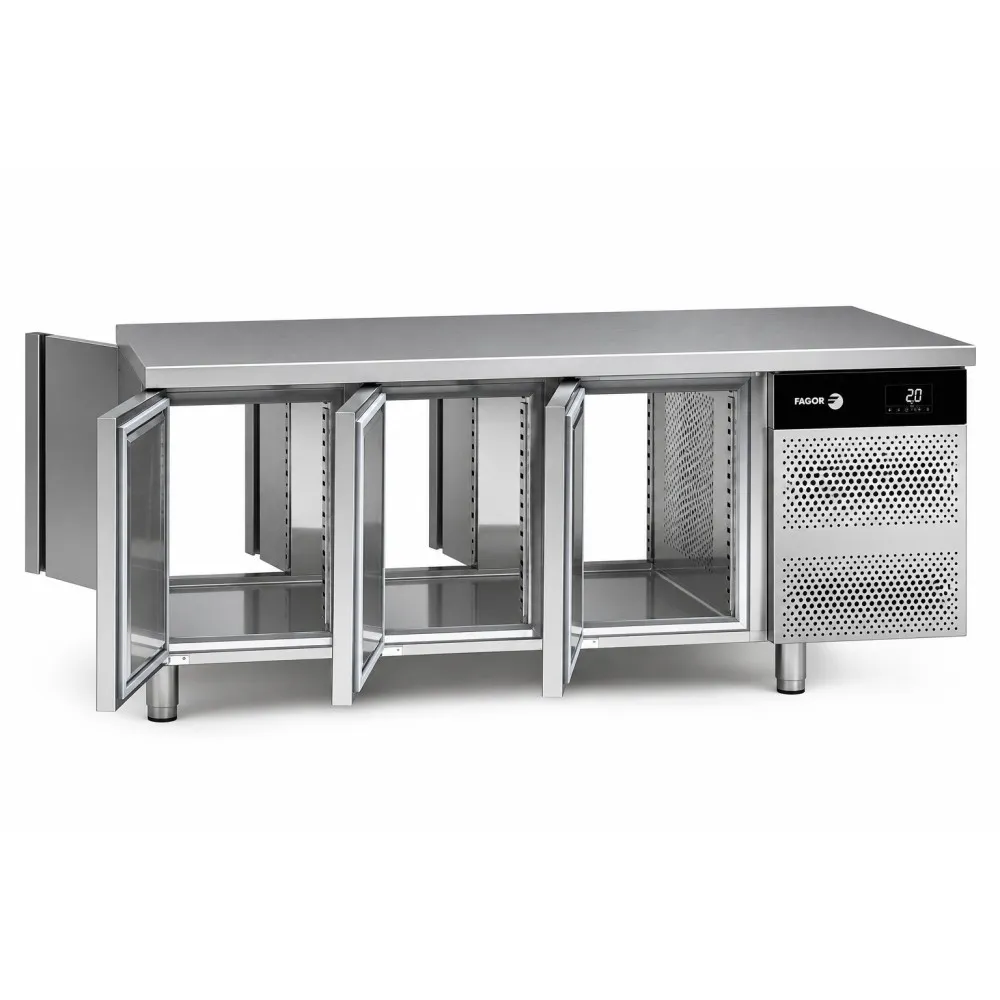

FAGOR Pass-Through Refrigeration Counter 700 GN1/1 CCPC-3G/C

This pass-through refrigeration counter allows seamless workflow between kitchen and service areas. Staff on either side can access the unit without interrupting each other, sliding doors open to remove or replace chilled trays of prepared food directly from their stations.

A forced-air cooling system circulates chilled air evenly throughout the cabinet, maintaining consistent temperatures across all shelves. The unit quickly restores the internal climate after doors are opened, keeping contents within the safe 0 °C to +8 °C range.

The interior accommodates GN 1/1 trays on height-adjustable slides or a fixed shelf, allowing flexible storage for various container sizes. Once loaded, the electronic control system maintains the set temperature, with a digital display providing real-time monitoring.

Constructed entirely from stainless steel, including the worktop, the cabinet features 50 mm insulation to minimise temperature loss. Removable magnetic door seals simplify cleaning, while adjustable legs (130–200 mm) ensure stability on uneven surfaces.

Temperature control is managed via a digital panel, with automatic off-cycle defrosting eliminating the need for manual intervention. The 428 litre capacity supports GN 1/1 trays, with each shelf rated for up to 40 kg. The 0.361 kW compressor operates on a 220-240 V single-phase 50 Hz supply.

The unit measures 1792 x 778 x 850 mm and weighs 130 kg, requiring careful positioning due to its size. All interior components, including shelves and slides, are removable for thorough cleaning, while the stainless steel surfaces allow for easy sanitisation.

Two refrigerant options are available: standard R600a or an R290 version with alternative power specifications.
