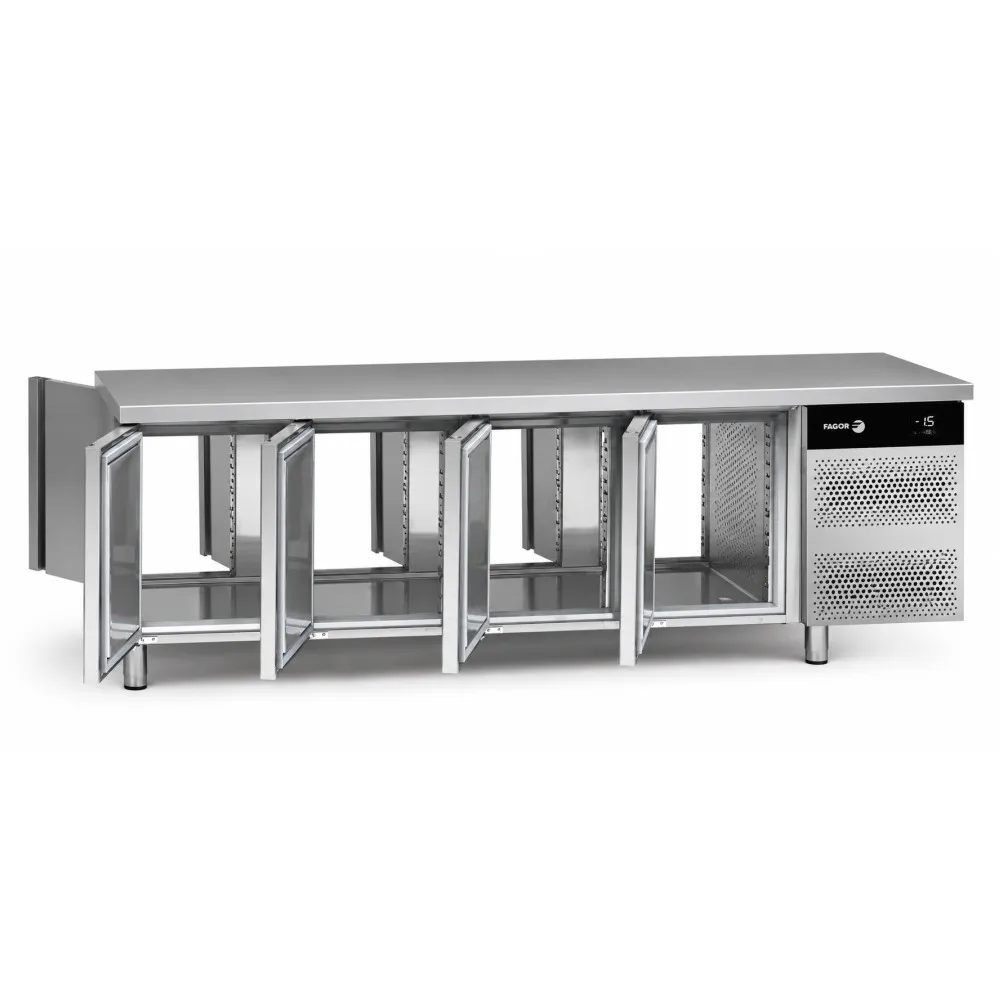

FAGOR Pass-Through Refrigeration Counter 700 GN1/1 CCPC-4G/C

This refrigeration counter allows access from both sides, enabling kitchen staff to load and unload GN 1/1 gastronorm trays without interrupting workflow. Positioned between prep and service areas, it maintains chilled ingredients at a consistent temperature for continuous use.

Cold air circulates via a fan-driven evaporator coil, ensuring even distribution throughout the cabinet. The system employs off-cycle defrost, where the compressor pauses to allow natural thawing of frost without additional heating elements.

Each side features four doors, each equipped with height-adjustable tray slides and one fixed GN 1/1 shelf. An electronic control panel displays the current temperature and permits adjustment within the 0 °C to +8 °C range, maintaining the set temperature automatically.

Constructed from food-grade stainless steel, the unit includes a 50 mm insulation layer to minimise heat transfer. The worktop is also stainless steel, offering a durable surface for temporary storage. Doors are fitted with removable magnetic gaskets for easy cleaning and a secure seal.

The digital control panel shows the current temperature and allows adjustments within the specified range. The 581 litre capacity accommodates multiple GN 1/1 trays on adjustable slides and fixed shelves. The unit operates at 0.436 kW, requiring a 220-240 V single-phase supply, standard in professional kitchens. Weighing 160 kg, it must be moved with appropriate equipment, and adjustable legs (130–200 mm) ensure stability on uneven floors. The dimensions are 2242 x 778 x 850 mm, requiring sufficient space for full door access.

Cleaning involves removing and washing the magnetic door gaskets separately. Shelves and slides can be taken out for thorough cleaning, while stainless steel surfaces can be wiped with standard sanitiser. Regular checks of the fan and evaporator coil for dust or grease are recommended, along with inspecting the adjustable legs for stability.

A 60 Hz version is available with refrigerant R600a and a power rating of 0.437 kW.

Designed for GN 1/1 gastronorm trays, this counter fits standard kitchen layouts and is classified as climate class 4.
