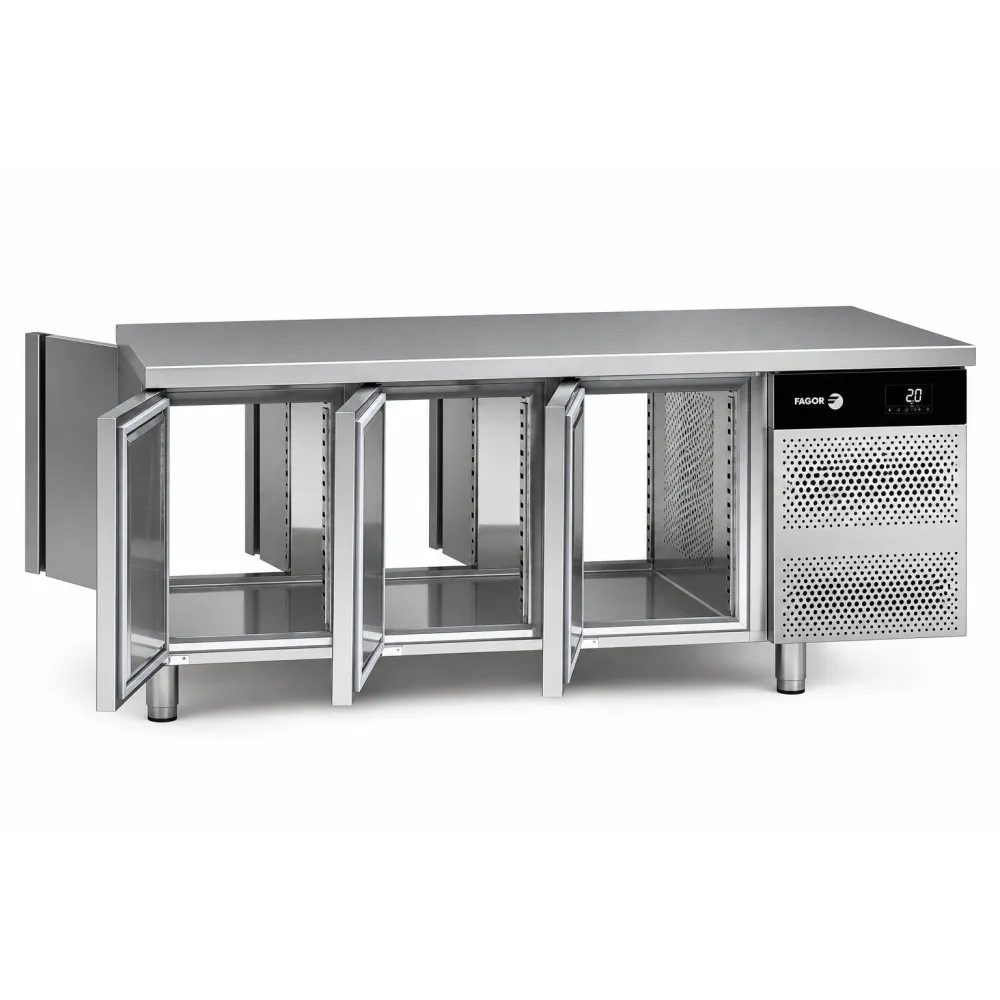

Fagor Pass-Through Refrigeration Counter ACP-3G/C for GN1/1 Trays

This pass-through refrigeration counter allows kitchen staff to load chilled food from one side and serve from the other while maintaining a consistent low temperature. The system uses off-cycle defrost, stopping the compressor at intervals to melt frost naturally, reducing energy consumption and preventing ice build-up.

GN 1/1 gastronorm trays fit onto height-adjustable slides or a fixed shelf. The digital control panel sets the temperature, while forced-air cooling ensures even cold air distribution across all trays. Doors feature automatic closing to minimise warm air entry, with magnetic seals preventing cold loss. They can be secured open at 120° for loading or cleaning or will close automatically when released below 90°.

Constructed from AISI 304 stainless steel, both inside and out, the unit includes a 30 mm worktop. Insulation consists of 60 mm high-density polyurethane foam, free from freon. The front panel provides access to technical components, and ventilation grilles allow built-in installation without compromising cooling efficiency.

Controls include a 5-inch digital display and an electronic management system with an ECO energy-saving mode. The HACCP system records up to ten temperature alarms and power interruptions, supporting food safety compliance. The refrigerant used is R600a.

With a 446 litre capacity, the unit accommodates multiple GN 1/1 trays, organised on one fixed shelf and two sets of adjustable slides per door. It measures 1790 mm wide, 768 mm deep, and 850 mm high, with a weight of 130 kg. Adjustable stainless-steel legs allow levelling on uneven floors between 130 mm and 200 mm.

The 0.36 kW power rating allows operation on a standard 220-240 V circuit at 50 Hz, matching UK mains frequency.

Cleaning involves removing trays and slides, wiping down the rounded interior surfaces, and emptying the drainage outlet. Magnetic door seals can be detached for thorough cleaning, while the stainless-steel worktop and exterior are easily sanitised.

A 60 Hz version with the same refrigerant and power rating is available as a separate model.

Designed for GN 1/1 gastronorm trays, this counter integrates seamlessly with professional kitchen tray systems and is listed in the Fagor catering equipment catalogue.
