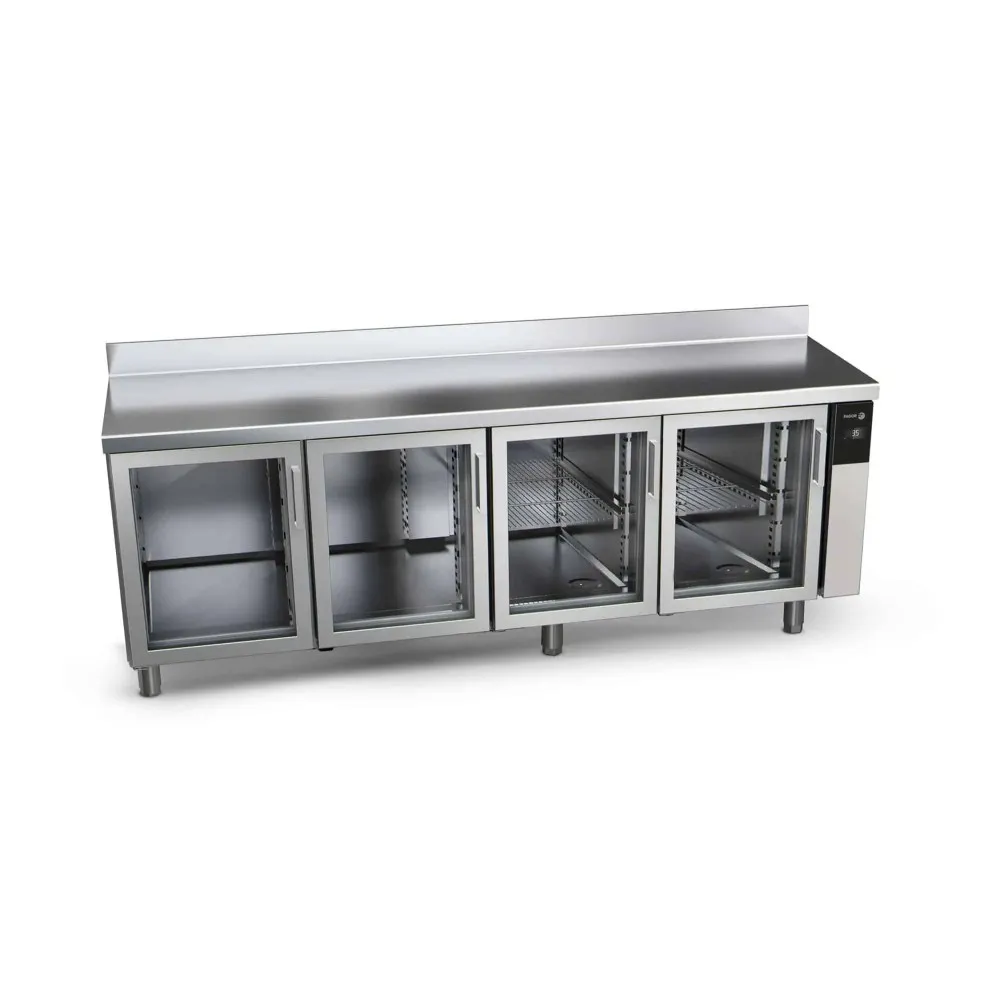

FAGOR Remote Refrigeration Counter Display with 4 Glass Doors

This refrigeration counter display maintains chilled food visibility and accessibility without an inbuilt refrigeration unit. It links to a remote condensing system, eliminating compressor noise and heat from the workspace. Cold air circulates via forced convection, ensuring even distribution across every shelf. This approach sustains a consistent temperature throughout the cabinet, avoiding warm spots that could affect food safety or shelf life.

Gastronorm trays fit onto adjustable slides or the fixed shelf, while the electronic controller sets the temperature between 0 °C and +8 °C. The display provides real-time temperature readings, allowing monitoring without opening the doors. Once the set temperature is reached, the system maintains it by cycling the remote compressor on and off. Defrosting occurs automatically, with the compressor pausing periodically to allow ice to melt.

Constructed from food-grade stainless steel inside and out, the unit includes a 50 mm insulation layer to minimise cold loss and reduce energy consumption. A 100 mm rear upstand on the worktop prevents spills from flowing behind the unit. Four double-glazed doors with low-emissivity glass reduce heat transfer while offering a clear view of the contents. Each door features an ergonomic handle and opens independently, allowing access to one section without warming the rest.

Inside, the unit includes one fixed GN 1/1 shelf and two sets of height-adjustable tray slides per full-size door. The slides and shelf are epoxy-coated and support up to 40 kg. Adjustable stainless-steel legs ensure the unit sits level on uneven floors and can be raised 130–200 mm for easier cleaning underneath.

With a 581-litre capacity, the unit accommodates a large volume of pre-plated dishes, desserts, or ingredients. Its 1942 x 700 mm footprint fits standard worktop depths and allows space for adjacent equipment. The 150 kg weight requires a sturdy floor and at least two people for safe movement. The 0.436 kW power rating reflects the load on the remote system, with the display itself drawing power only for fans and controls.

Cleaning is simple: stainless-steel surfaces wipe clean, and the shelf and slides can be removed for thorough washing. The adjustable legs make mopping underneath straightforward, while smooth interior corners prevent dirt accumulation. The remote refrigeration design eliminates the need to clean a compressor or condenser inside the unit, reducing maintenance time.

This model meets climate class 4 standards, ensuring reliable performance in typical commercial environments. It operates on a 220–240 V single-phase supply at 50 or 60 Hz, compatible with standard UK commercial circuits.
