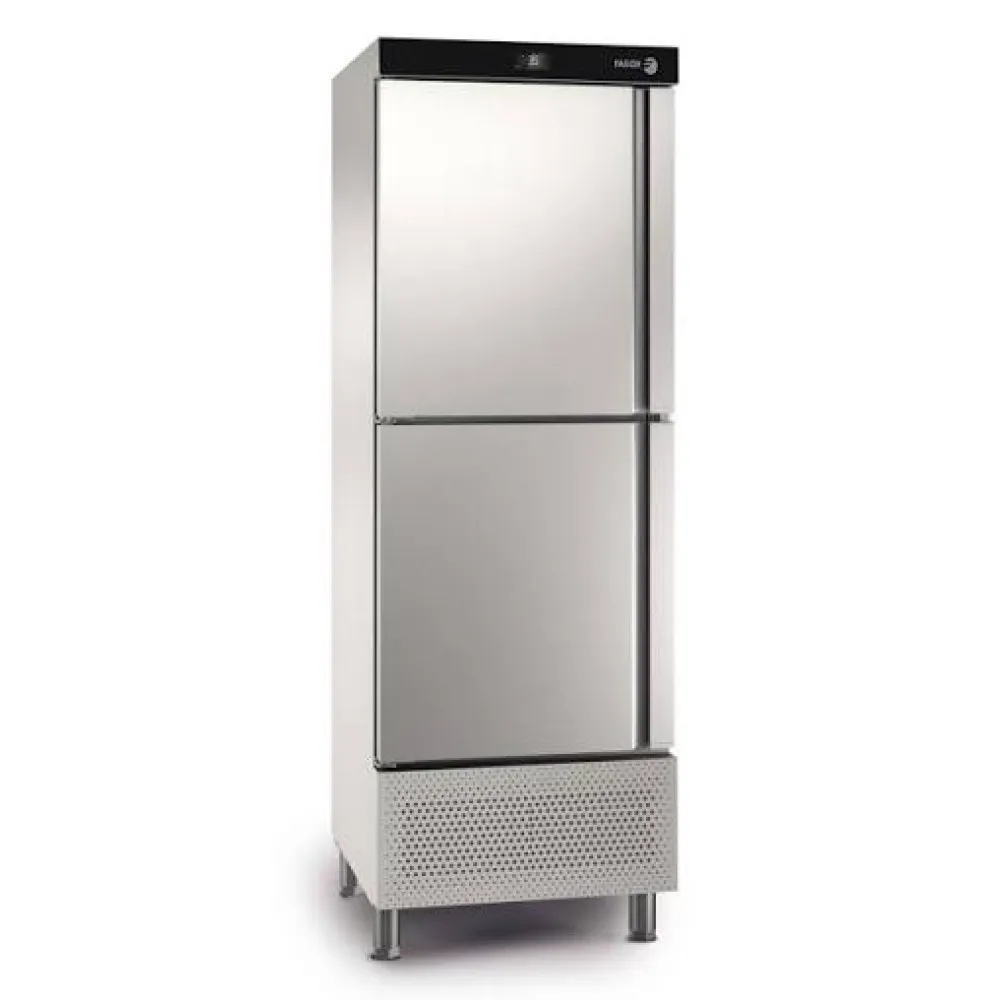

FAGOR SNACK Off-Cycle Defrost Refrigerator 506 L

A professional refrigerator built for high-volume food service keeps chilled ingredients at a steady 0 to 8 °C without manual defrosting.

The unit removes heat from the cabinet by circulating refrigerant through an evaporator coil. When the set temperature is reached, the compressor stops and the coil warms naturally, melting any frost that has formed. This off-cycle defrost method eliminates the need for daily defrosting cycles, so the cabinet stays in continuous service while keeping energy use low.

To load the refrigerator, the operator opens either of the two full-height doors and places trays, pans or containers on the adjustable shelves. An internal fan draws air across the evaporator and distributes it evenly throughout the 506 L chamber, ensuring every shelf receives the same chilled airflow. The electronic control panel on the front sets the target temperature within the 0 to 8 °C range; an LED display confirms the current reading and an interior light illuminates the contents whenever the door is open.

The cabinet is constructed from stainless steel inside and out, with 50 mm of insulation sandwiched between the inner and outer skins. This thickness of insulation slows heat transfer, helping the unit maintain a stable internal temperature even when the kitchen is warm. Adjustable legs allow the refrigerator to be levelled on uneven floors, and the 150 kg weight is distributed so the unit can be moved with a pallet truck or sack barrow.

Eighteen shelf positions are spaced at 70 mm intervals, each accepting a 560 × 542 mm epoxy-coated shelf rated to 40 kg. Shelves can be removed or repositioned without tools, allowing the interior to be reconfigured for taller items or bulk storage. The 693 × 739 mm footprint fits through standard kitchen doorways and leaves enough clearance for the doors to swing fully open.

A 220–240 V single-phase supply powers the compressor and fan, drawing 0.361 kW at 50 Hz. The refrigerant is R600a; an alternative model with R290 refrigerant is available under a separate article number.

Cleaning is simplified by the smooth stainless-steel surfaces and the removable shelves. The fan and evaporator coil are accessible from the rear for periodic maintenance, and the off-cycle defrost system reduces the need for manual frost removal.

The FAGOR SNACK CUP-12S is listed in the professional refrigeration section of the catalogue, under off-cycle defrost models.
