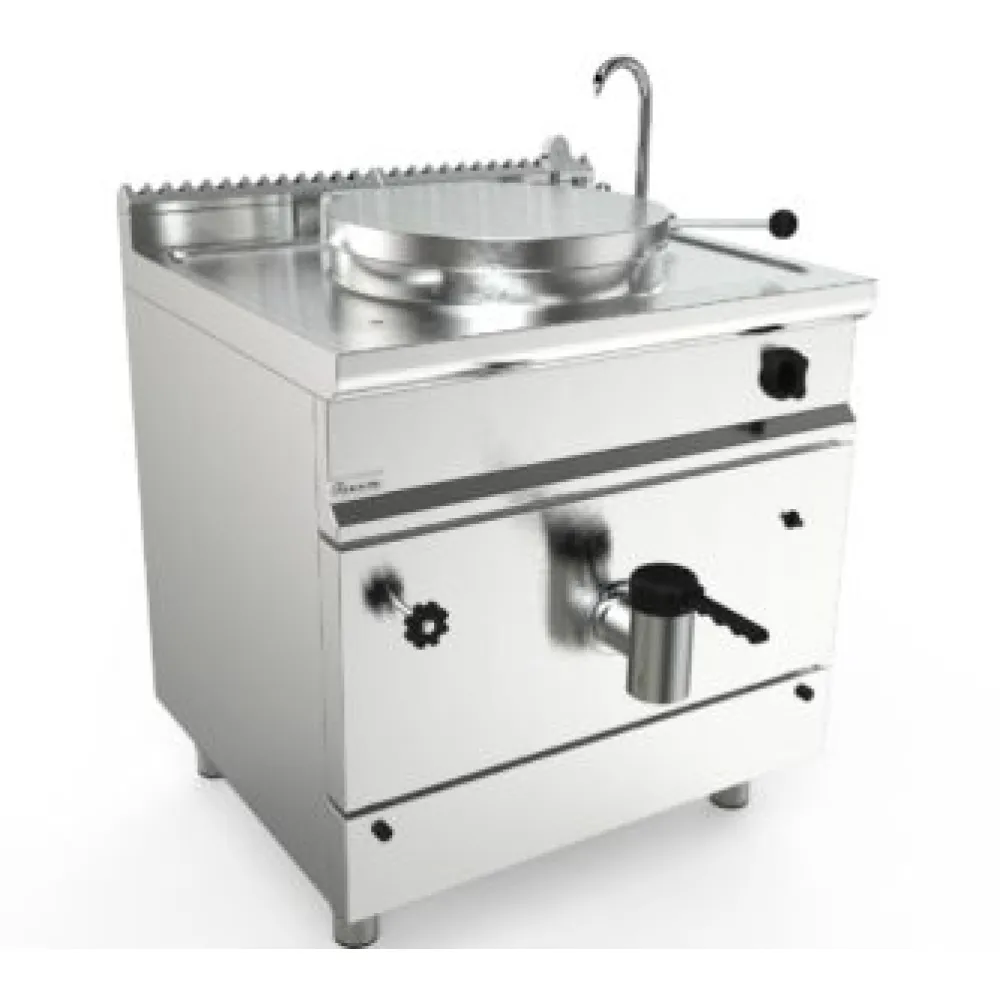

Gas boiling pan 50/60 L LADY 700 L7/PIG501

This high-end professional cooking vessel is specially designed for efficient and safe thermal processing of liquid or semi-liquid products, including acidic mixtures. The tank is made from high-quality AISI 316 stainless steel, providing maximum corrosion resistance and is ideal for processing particularly aggressive food products. The walls and outer casing are made from AISI 304 stainless steel with a fine satin finish, giving the device not only a refined appearance but also long-lasting protection against mechanical damage and chemical exposure.

The vessel is equipped with a balanced lid made of AISI 304 steel, featuring an athermic handle, silicone gasket, and a safety valve set at 0.05 bar. The lid is hermetically sealed with metal clamps, ensuring safe operation even at high temperatures and pressure.

The device’s structure is reinforced by a stainless steel supporting frame, while adjustable feet allow precise leveling of the unit on any type of working surface.

Effective thermal insulation is provided by thick glass fiber panels, significantly reducing heat loss and increasing energy efficiency while improving the working environment.

The tank is filled manually using a hot and cold water tap with a swivel hose, making usage flexible and adaptable to different needs. Draining is done via a chrome-plated brass drain tap with a 1”1/2 insulated handle, ensuring convenient and safe operation.

This model uses indirect heating through a double jacket made of AISI 304 stainless steel. This system ensures even and gentle heat transfer, which is essential to prevent product burning or overheating. The heating system consists of high-efficiency stainless steel tube burners that provide fast and effective heating.

Ignition is performed by a constant spark system powered by a 1.5V battery and a pilot flame, ensuring safe and instant burner ignition. The device is equipped with a thermoelement safety system and minimum/maximum gas valve function, providing additional protection during use.
