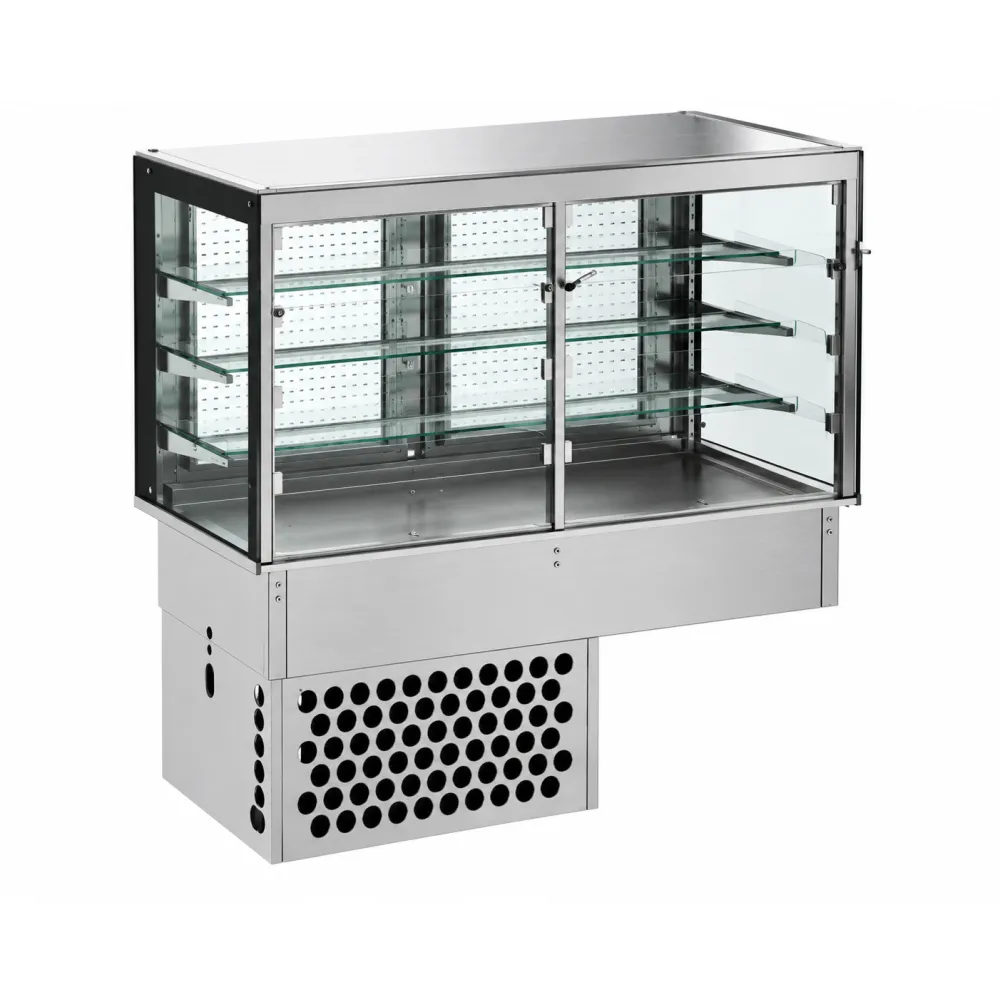

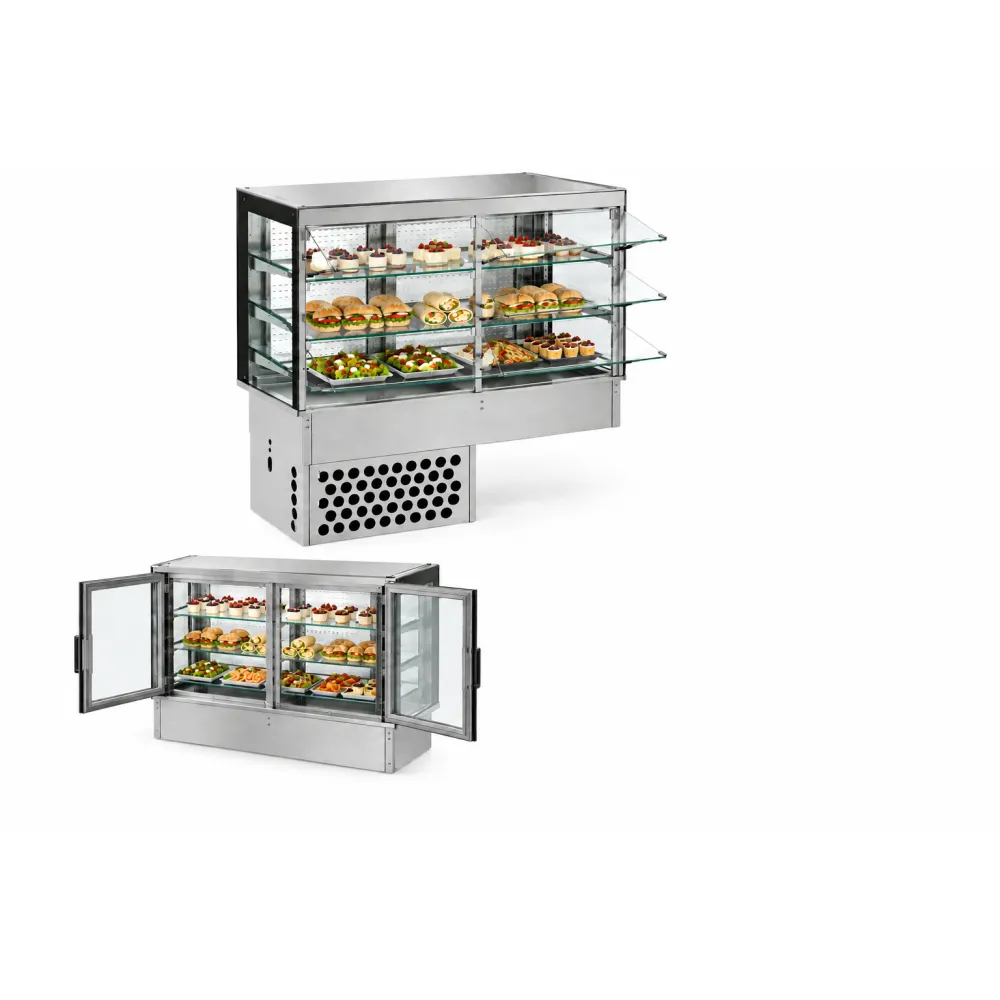

Refrigerated Display Case, Hinged Doors 2 GN1/1 DROP-IN DDRVC7-H-CP-3-2

Construction and materials

The display case is made of stainless steel with a satin finish.

The side walls of the display case are made of 8 mm thick tempered glass, providing excellent product visibility and increased safety during operation.

Cooling system

The ventilated cooling system is equipped with high-performance electronic fans and large-area evaporators, ensuring efficient and even circulation of cold air.

High-density (40 kg/m³) polyurethane insulation with ecological, CFC-free filling reduces cold air loss and helps reduce energy consumption.

Control and temperature regulation

The unit is equipped with an electronic thermostat and digital display for precise temperature regulation. The control panel allows the temperature to be adjusted and the display lighting to be switched on.

The control panel is positioned to protect it from accidental impacts and prevent interference with daily operation. It is connected by a 1 m cable, allowing it to be installed separately from the display case, for example under the worktop or on the front of the built-in furniture.

Defrost and drainage system

The automatic defrost system reduces compressor workload and helps save energy.

The refrigerated well features an integrated drain for removing condensation water. Connection of the drain to the wastewater system is mandatory.

As an optional accessory, a condensate evaporation tray with an intelligent defrost water evaporation system is available. A level sensor activates the heating element only when a certain amount of water is present in the tray, thereby reducing energy consumption.

Lighting

A 4500 K pure white LED light strip with a power of 22 W/m is integrated into the upper part of the display case, ensuring excellent product visibility and attractive presentation.

Shelves and product access

The display case is equipped with easily removable and height-adjustable tempered glass shelves.

On the customer side, each shelf level is equipped with opening plastic protective elements, providing easy access to the products.

On the service side, the display case is equipped with hinged doors, providing convenient product loading, replenishment and replacement.

Installation

The display case is designed for installation into a worktop. Once installed, the robust structural edge overlaps the worktop by 13 mm.
