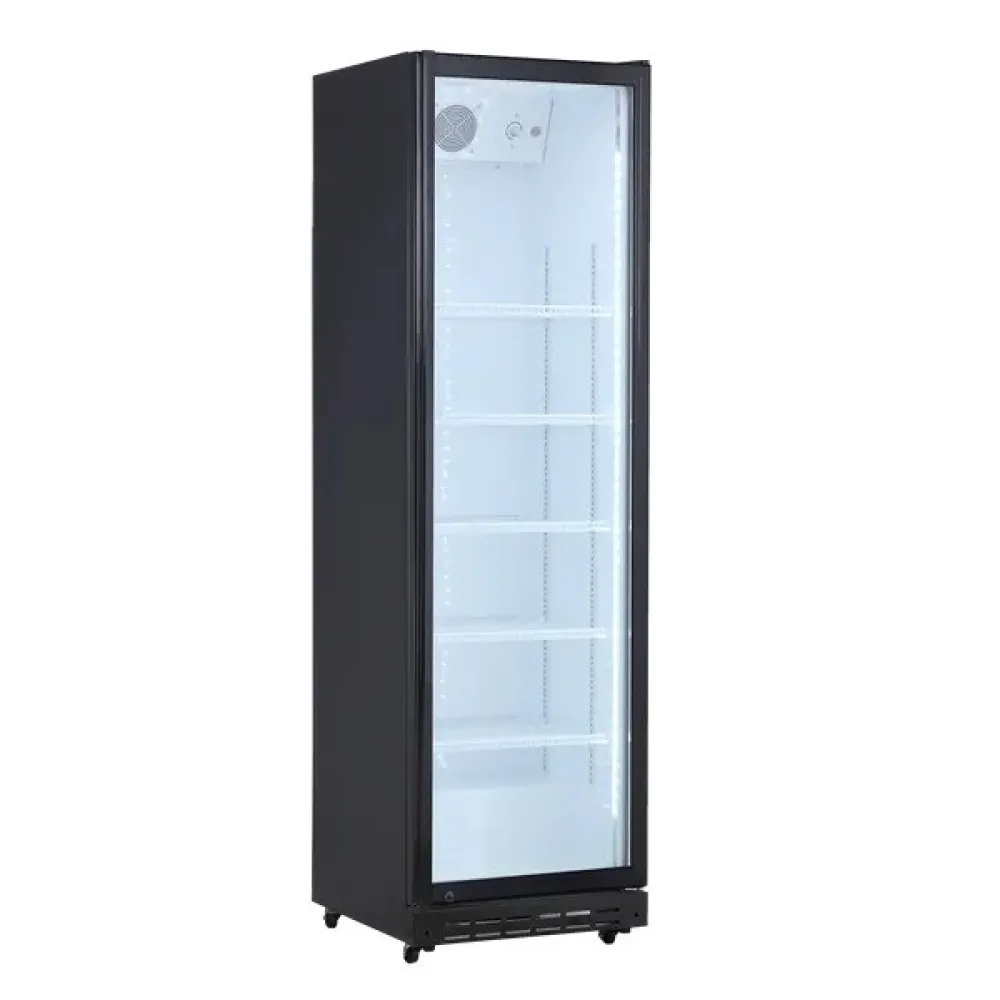

SCANDOMESTIC DC430BWD Refrigerated Display Cabinet 360 L

This refrigerated display cabinet keeps chilled products visible and accessible while maintaining a consistent low temperature. A compressor circulates refrigerant through coils, removing heat from the interior and releasing it outside. A fan then spreads the cooled air evenly across every shelf, ensuring uniform temperature for all items. The glass door seals automatically to reduce cold-air loss, while internal LED strips light the contents without generating noticeable heat.

Place the cabinet on a level surface where ventilation grilles remain unobstructed. Connect it to a 220–240 V supply and adjust the thermostat to between 0 °C and +10 °C. Once the temperature stabilises, load the five adjustable wire shelves with up to 34 kg per shelf. The shelves slide out for convenient stocking and can be repositioned to fit taller items. Close the self-closing glass door; the built-in lock secures the contents when needed. Four castors allow easy movement, and they lock to prevent unintended shifting once positioned.

The 360-litre net volume is distributed across five white wire shelves, each measuring 465 mm wide by 455 mm deep. The wire design allows air to circulate freely around every product, preventing warm spots. Two vertical LED strips illuminate the interior, casting even light across the front of each shelf to enhance product visibility. The exterior is black with a white interior, creating a contrast that makes items stand out. A climate class of CC2 ensures reliable operation in typical indoor retail and catering environments.

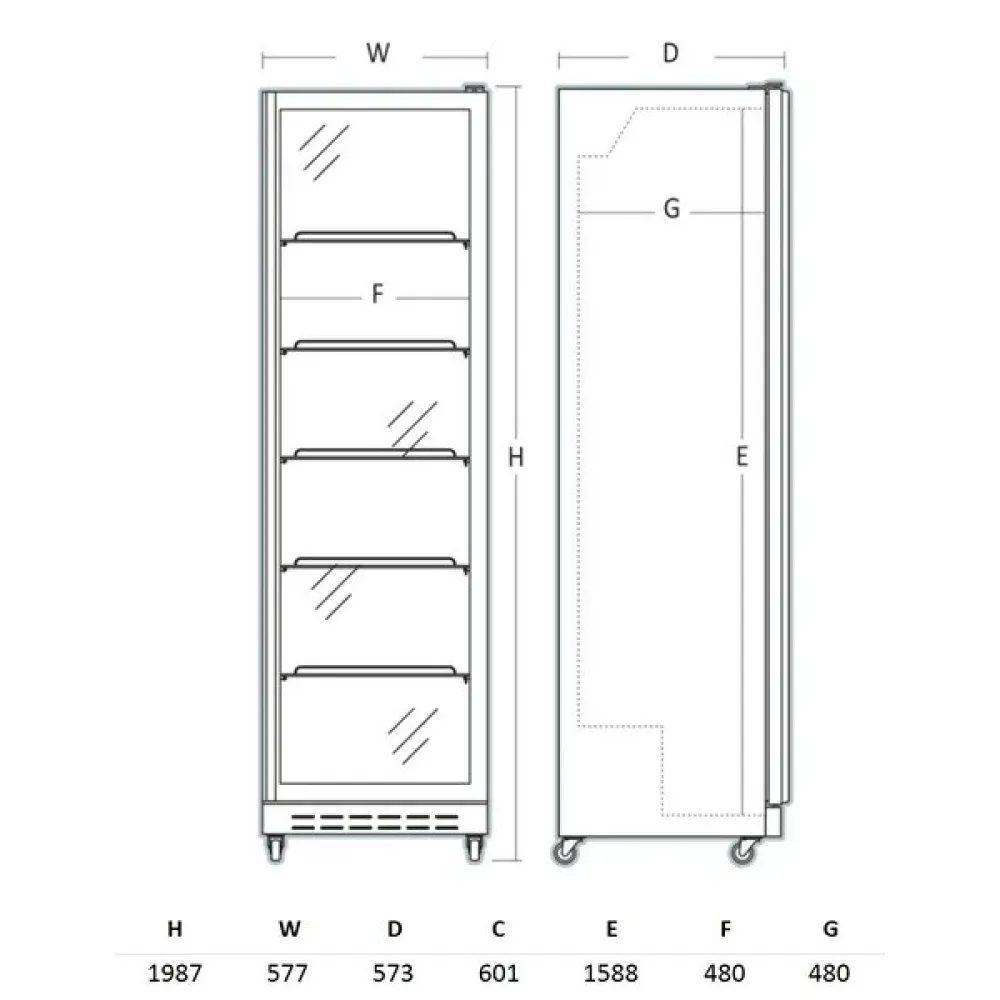

The electrical requirement of 220–240 V, 50 Hz matches standard single-phase circuits in commercial settings. The 0.260 kW power rating reflects the compressor's energy use. A temperature range of 0 °C to +10 °C keeps beverages and packaged foods chilled without freezing, preserving quality. The 34 kg maximum load per shelf determines how many items can be safely stored. The overall dimensions of 1987 mm high, 577 mm wide, and 573 mm deep allow it to fit through standard doorways and align with common worktop depths.

Cleaning involves wiping the wire shelves and interior with a damp cloth and mild detergent; shelves can be removed for thorough cleaning. The exterior black panels and glass door are cleaned with standard glass cleaner to maintain clarity. The LED strips require only occasional dusting. The refrigerant R600a is pre-charged and sealed, so no maintenance is needed during normal use.

The DC430BWD belongs to the SCANDOMESTIC DC range, designed for retail and food-service environments where product visibility and temperature control are critical.
