Technical data
| Attributes | |
| ARTICLE | PDA3-CTF120B-1 |
| POWER | 0.61 kW |
| SIZE L/W/H | 1204/ 745/ 1350 mm |
| VOLTAGE | 220-240 V |
| Temperature | -1/ +5 °С |
| VOLUME | 338L / 530L (gross) |
| WEIGHT | 213 kg |
| Lighting | LED |
| Material | Stainless steel / Glass |

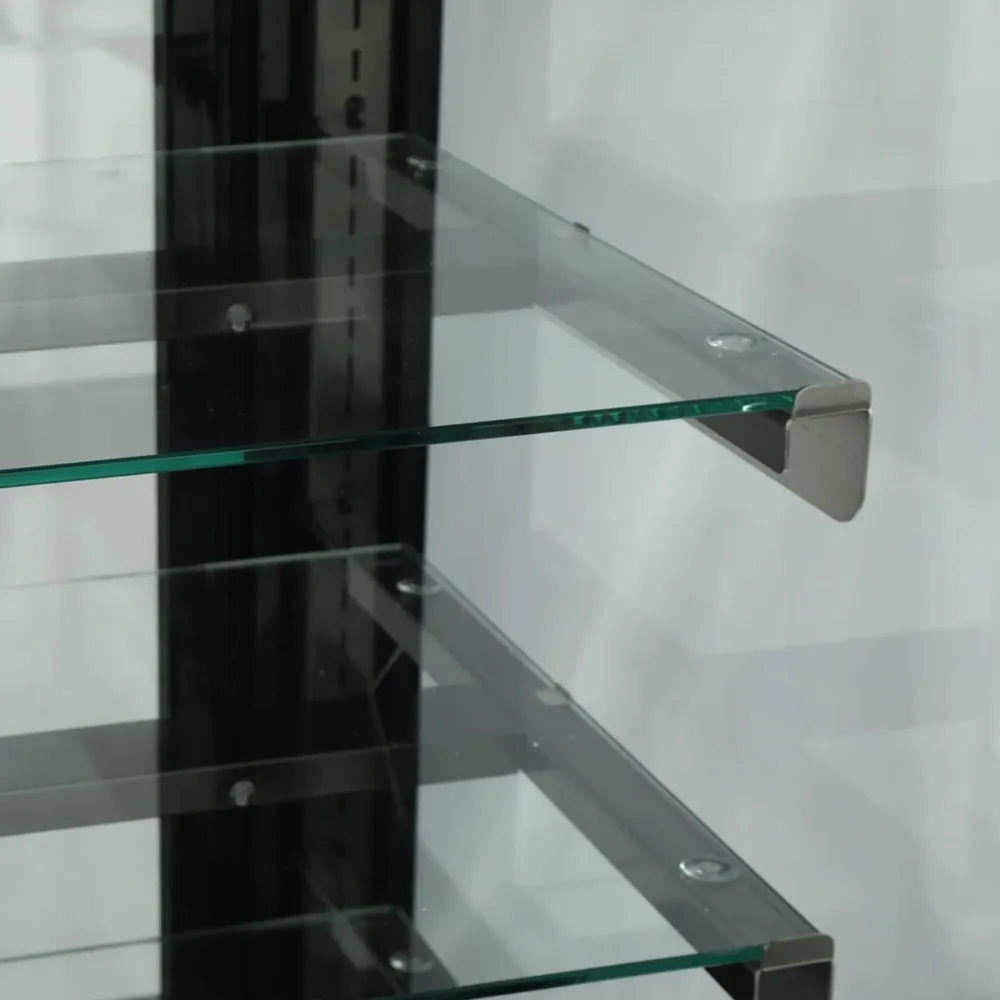

| SHELVES | 3 glass shelves + base |
| PRODUCT COLOR | Black |
| Refrigerant | R290 / 115gr |
| NOTES | 4 wheels / sliding doors |

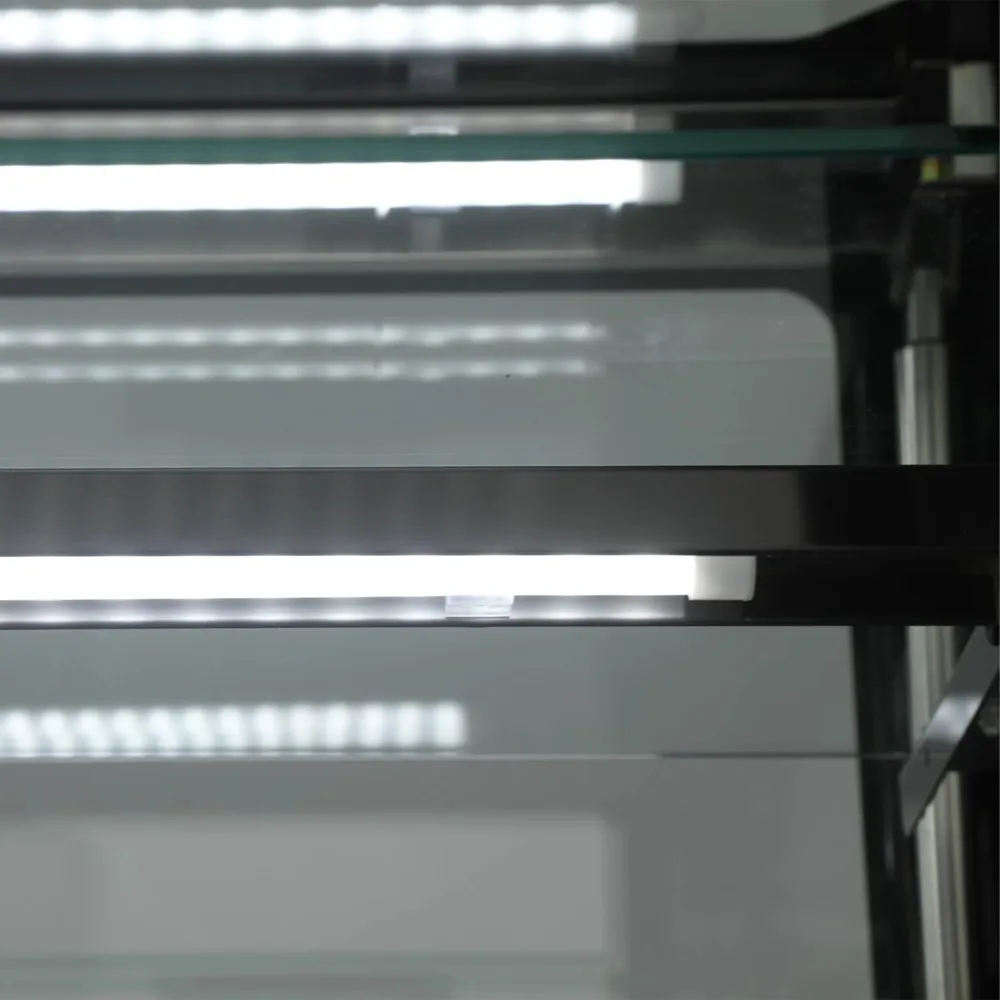

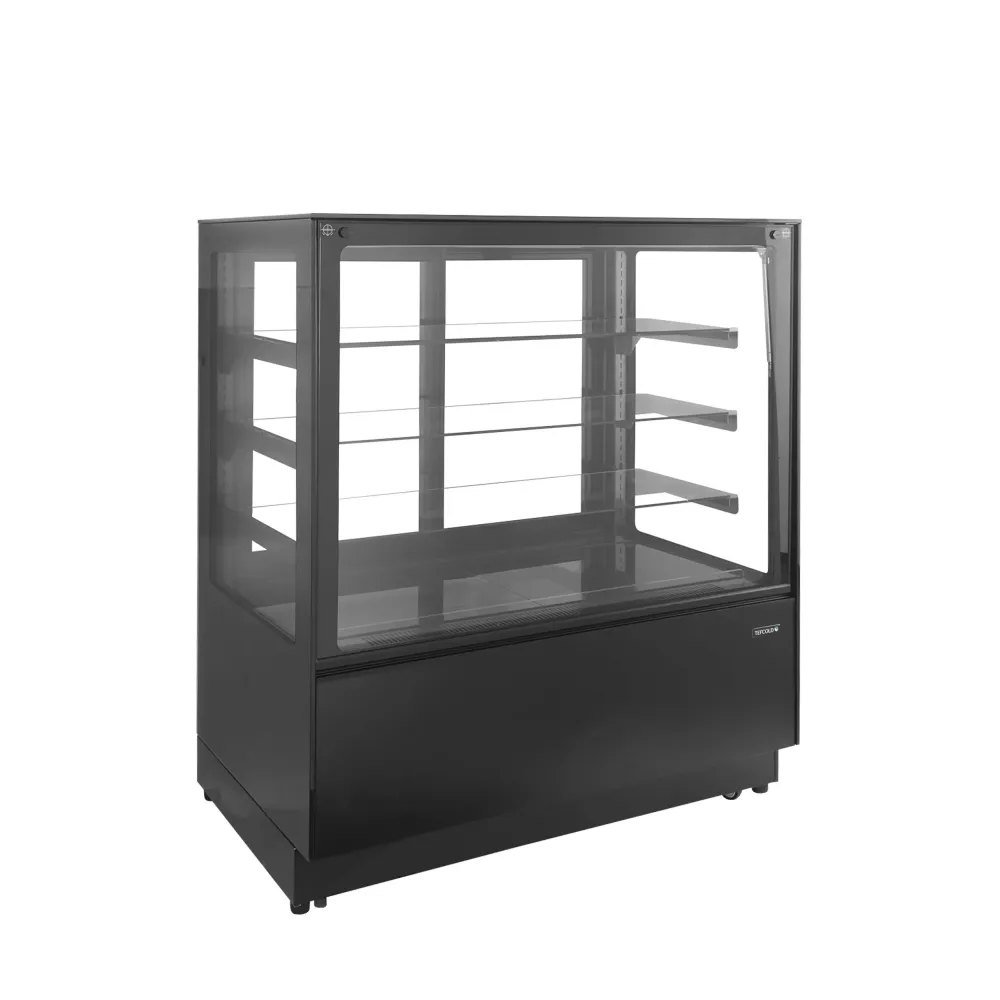

A refrigerated display case with an elegant black finish and glass shelves that highlight the visual appeal of the products. The display is equipped with LED lighting both at the top of the unit and beneath each shelf, providing even and attractive illumination of the products.

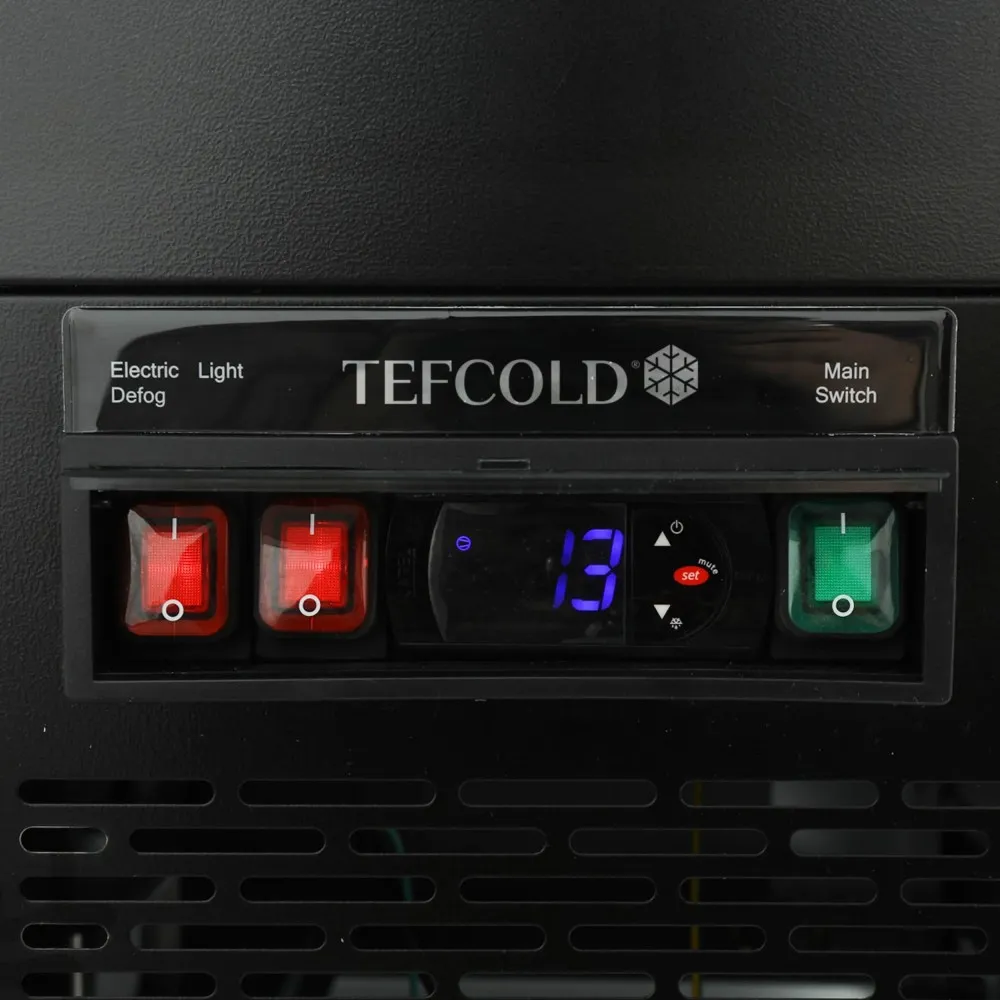

An efficient ventilated cooling system and 3M1 temperature class ensure optimal storage conditions for food, bakery and pastry products and cakes, preserving their freshness and quality. The temperature can be easily adjusted using the digital controller.

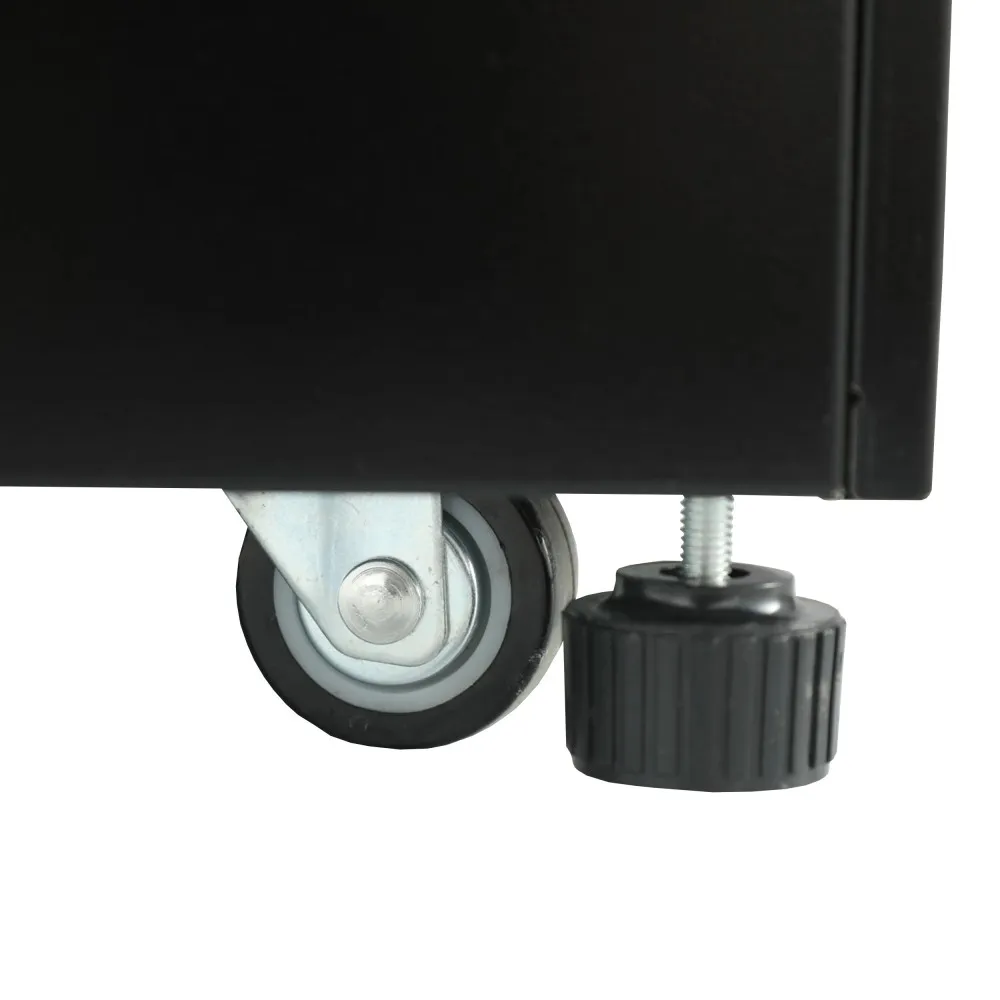

The display has sliding doors at the rear, which provide convenient product placement and service. The front glass opens forward, making the display easier to clean and maintain. For additional mobility the counter is fitted with castors, allowing it to be easily moved as needed.
A pastry display cabinet keeps delicate pastries, cakes and desserts chilled while presenting them in clear view. The refrigeration system circulates cold air evenly around the interior, maintaining a steady temperature just above freezing. This slows spoilage without freezing the product, preserving texture and appearance. LED lighting under each shelf illuminates the display from within, casting a bright, even glow that highlights colours and details without generating heat that could warm the food. The glass construction allows customers to see the full selection from a distance, encouraging impulse purchases without opening the cabinet and letting cold air escape. The operator loads the cabinet by sliding the rear glass doors open and placing items on the three glass shelves or the base. The digital controller sets the desired temperature between -1 and +5 °C, and the display shows the current reading. Once the doors are closed, the refrigeration cycle begins automatically, circulating cold air through the cabinet. The anti-fog coating on the front glass keeps the view clear even when the ambient humidity is high. When the cabinet needs to be moved, four wheels allow it to roll across the floor without lifting. The cabinet is built with a stainless steel frame and glass panels, combining durability with a sleek appearance. The front glass opens forward for loading or cleaning, while the rear doors slide to save space in tight kitchens. The condenser filter is designed for quick removal and cleaning, preventing dust build-up that could reduce efficiency. Automatic defrost cycles remove ice from the evaporator without manual intervention, ensuring consistent cooling performance. The 0.61 kW power rating indicates the load the cabinet places on the electrical supply, suitable for a standard 220-240 V circuit found in most professional kitchens. The temperature range of -1 to +5 °C is tailored for chilled display, keeping pastries fresh without freezing them. The 338 L net volume provides ample space for a variety of items, while the 213 kg weight ensures stability once positioned. The 1204 mm width fits standard worktop depths, and the 1350 mm height allows for easy viewing from a standing position. Cleaning involves wiping the glass shelves and interior surfaces with a damp cloth, while the condenser filter can be removed and rinsed under water. The stainless steel exterior resists stains and fingerprints, maintaining a professional appearance. LED strips beneath each shelf cast a cool, even glow that keeps croissant layers and fruit tarts looking fresh from the oven throughout the service. The CTF120B is available in black, with three glass shelves and a base included. The refrigerant R290 is used in a 115 gr charge, chosen for its efficiency and lower environmental impact. This cabinet is categorised under pastry display equipment in the refrigeration section of the catalogue.
