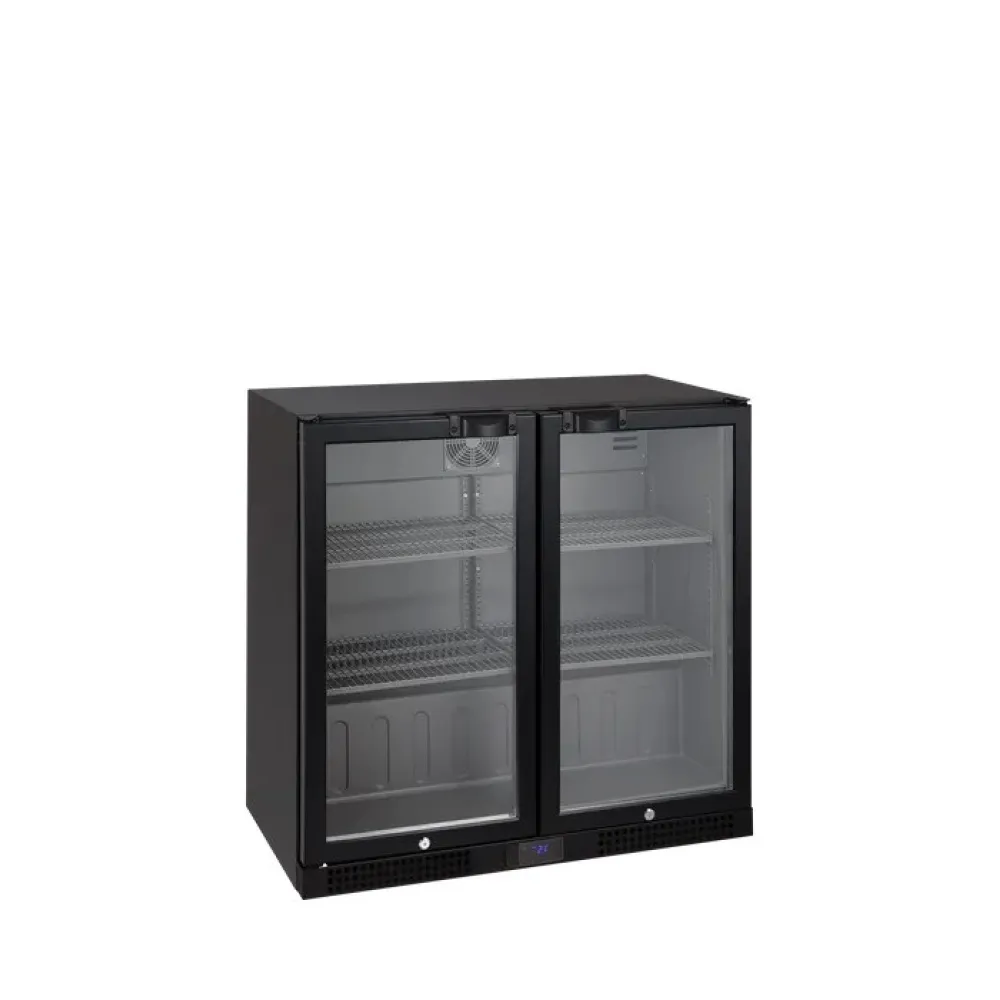

TEFCOLD DB202H Bar Refrigeration Unit

This bar refrigeration unit maintains bottled and canned drinks at serving temperature without ice. The DB202H features a compressor-driven cooling system that circulates refrigerant through an internal evaporator coil. A fan distributes chilled air evenly across the shelves, ensuring consistent cooling throughout the cabinet. This ventilated system removes heat more efficiently than static cooling, keeping all items uniformly cold from front to back and top to bottom.

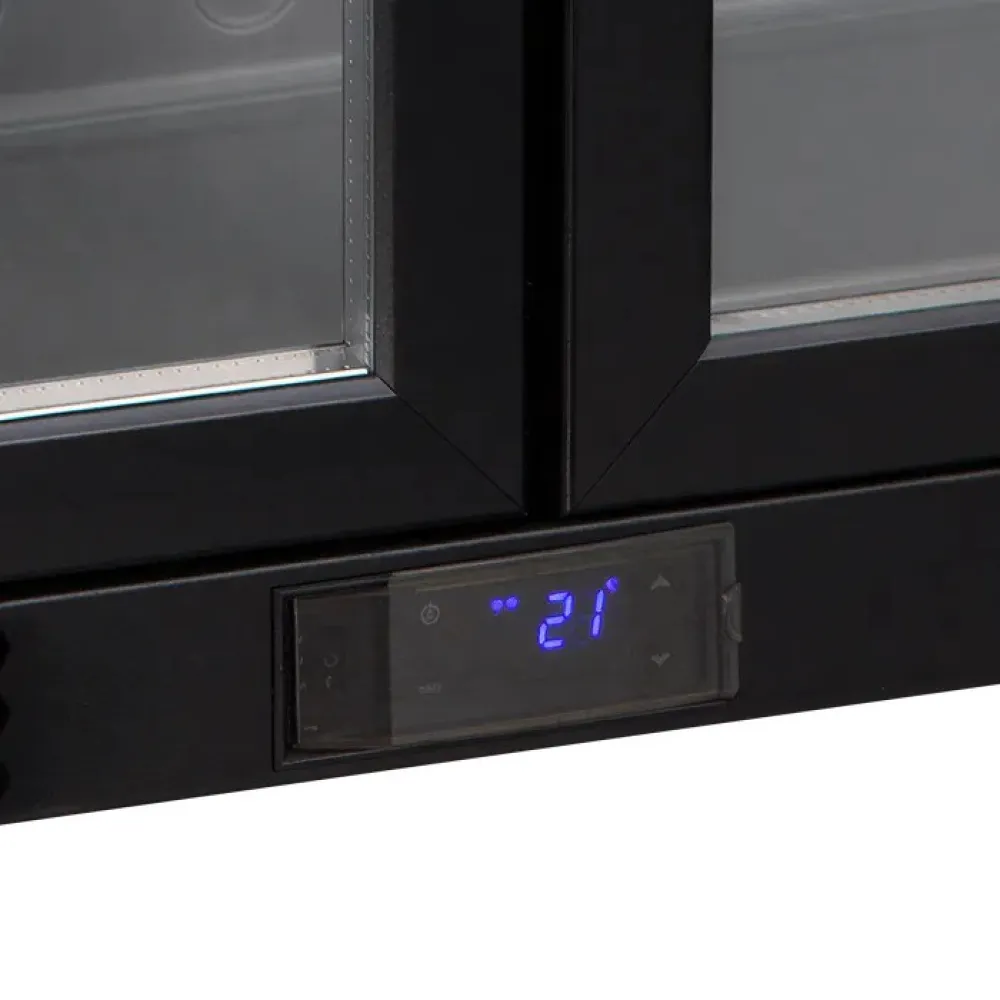

To operate, connect the unit to a 220-240 V, 50 Hz supply and adjust the legs for level placement. Arrange bottles and cans on the two wire shelves, allowing space for air circulation. Set the electronic thermostat to the desired temperature within the +2 °C to +10 °C range; the display indicates the current temperature. An automatic defrost cycle periodically melts any ice build-up on the coil, draining the water away without manual intervention. Internal LED lighting activates when the door opens, providing clear visibility without generating additional heat.

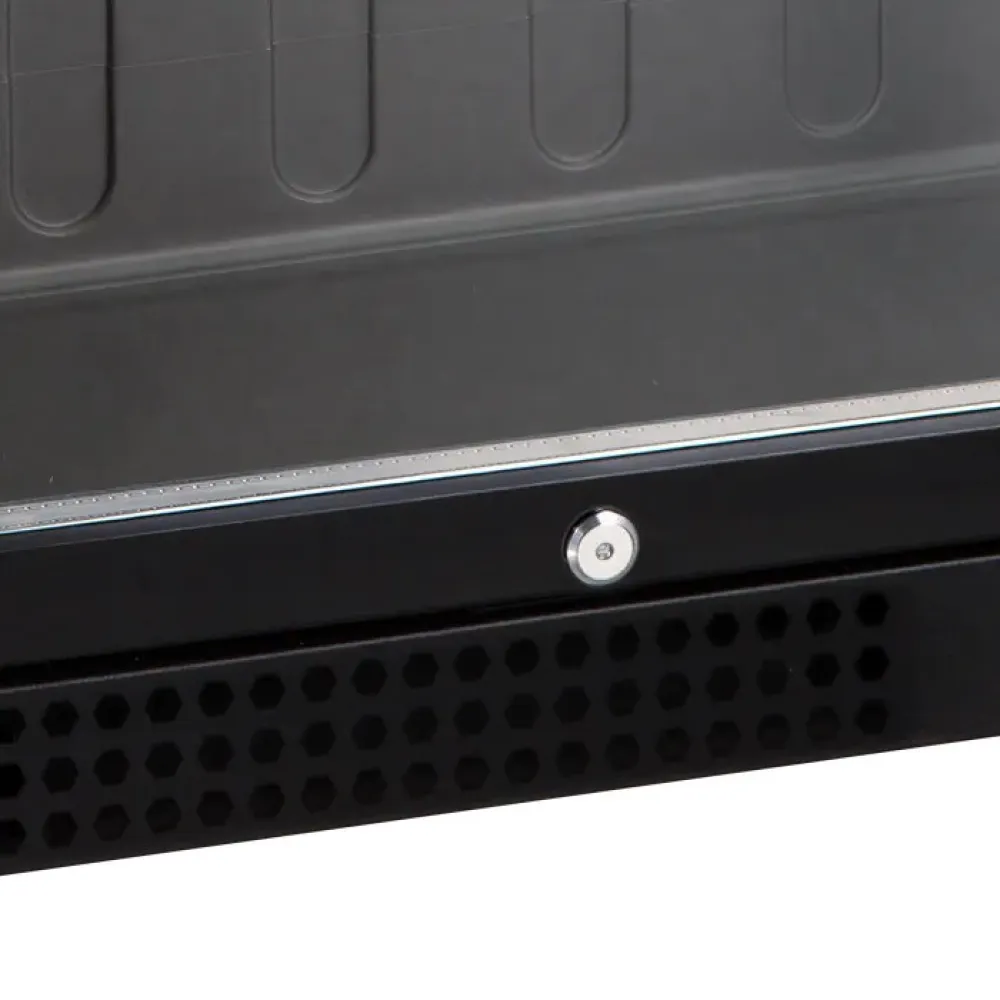

The cabinet is built with double-glazed glass panels set in a stainless steel frame, offering a full view of the contents while providing insulation against external heat. The two chrome wire shelves are height-adjustable to accommodate bottles of varying sizes. A lock secures the door when the unit is not in use.

The 0.139 kW power consumption ensures low energy use, making it suitable for continuous operation. The 63 kg weight allows for easy relocation by two people or with a small trolley. With external dimensions of 900 mm in width, the unit fits through standard doorways and under most bar counters. The net storage volume of 185 litres provides ample space for multiple bottles.

Maintenance involves wiping the glass and stainless steel surfaces with a damp cloth and mild detergent. The wire shelves can be removed for deeper cleaning, and the drain outlet at the cabinet base should be checked regularly to ensure it remains unobstructed. The automatic defrost system removes the need for manual coil cleaning, simplifying upkeep.
