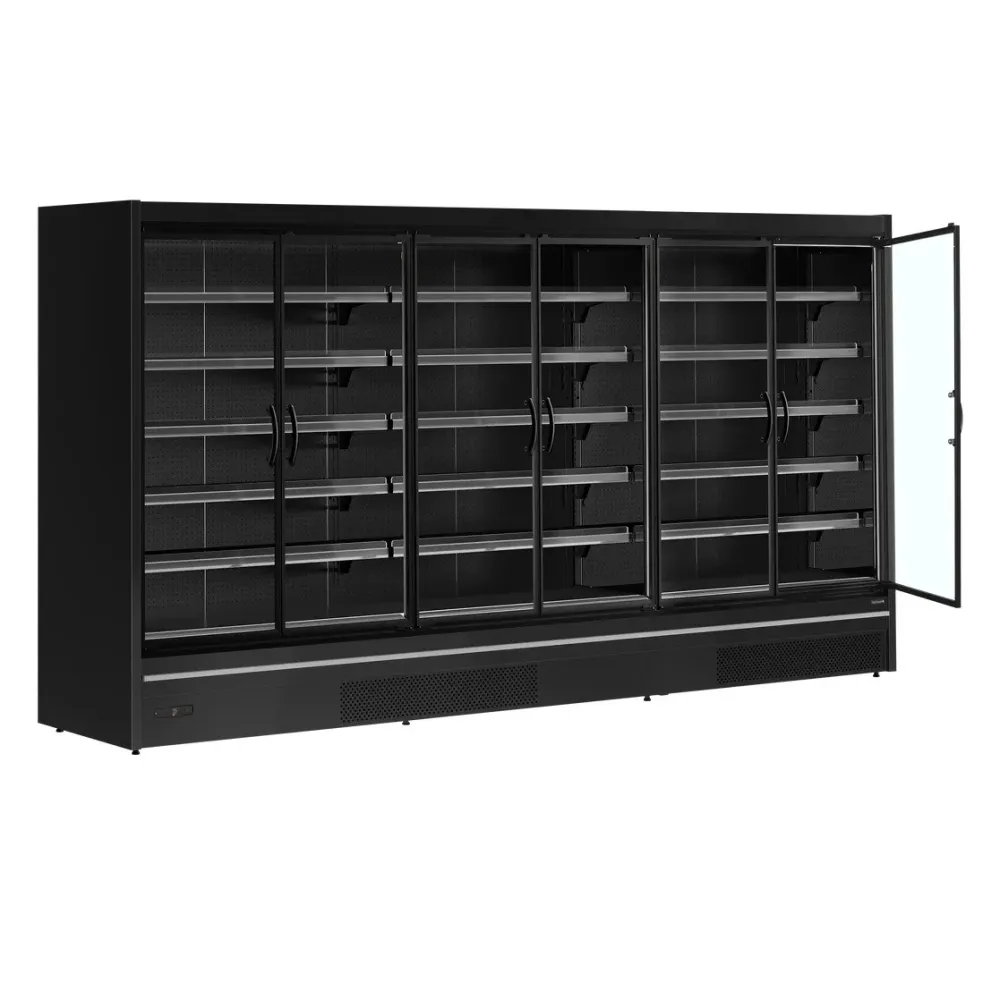

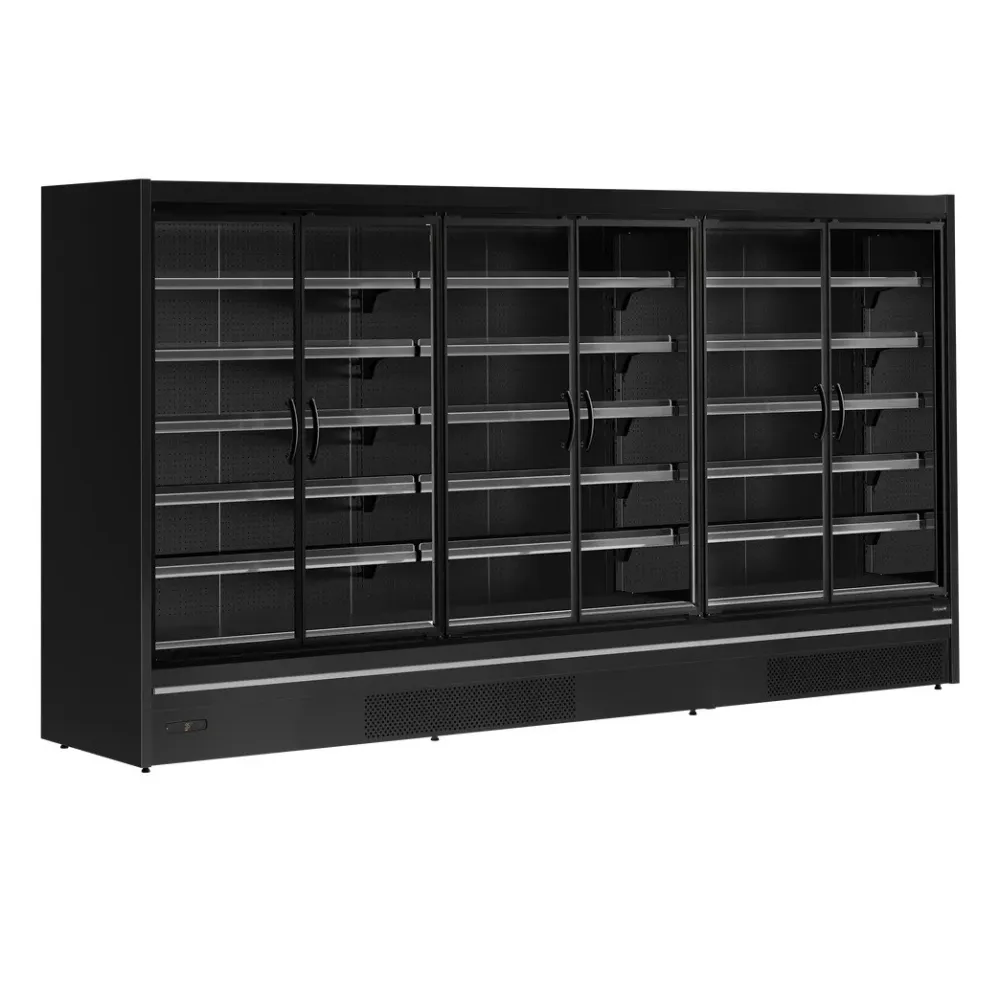

TEFCOLD English Multideck Display Cooler with Hinged Doors

A multideck display cooler creates a chilled zone in front of the customer while keeping the interior at a precise low temperature. The refrigeration system circulates cold air across the shelves, forming a gentle curtain that maintains the set range without drying the products. This method allows open-fronted display while preventing warm air from entering, balancing visibility with energy efficiency. The cooler's fan-assisted airflow ensures even cooling across all levels, so items at the back stay as fresh as those at the front.

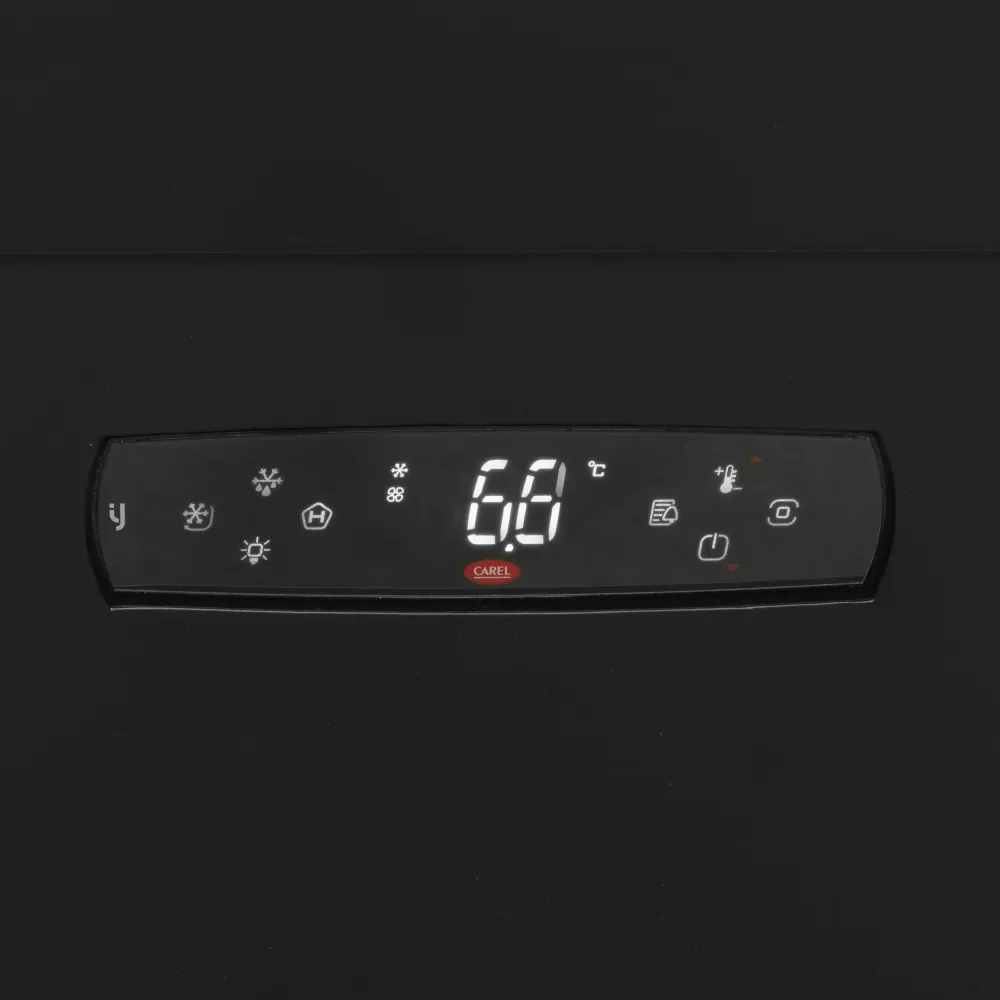

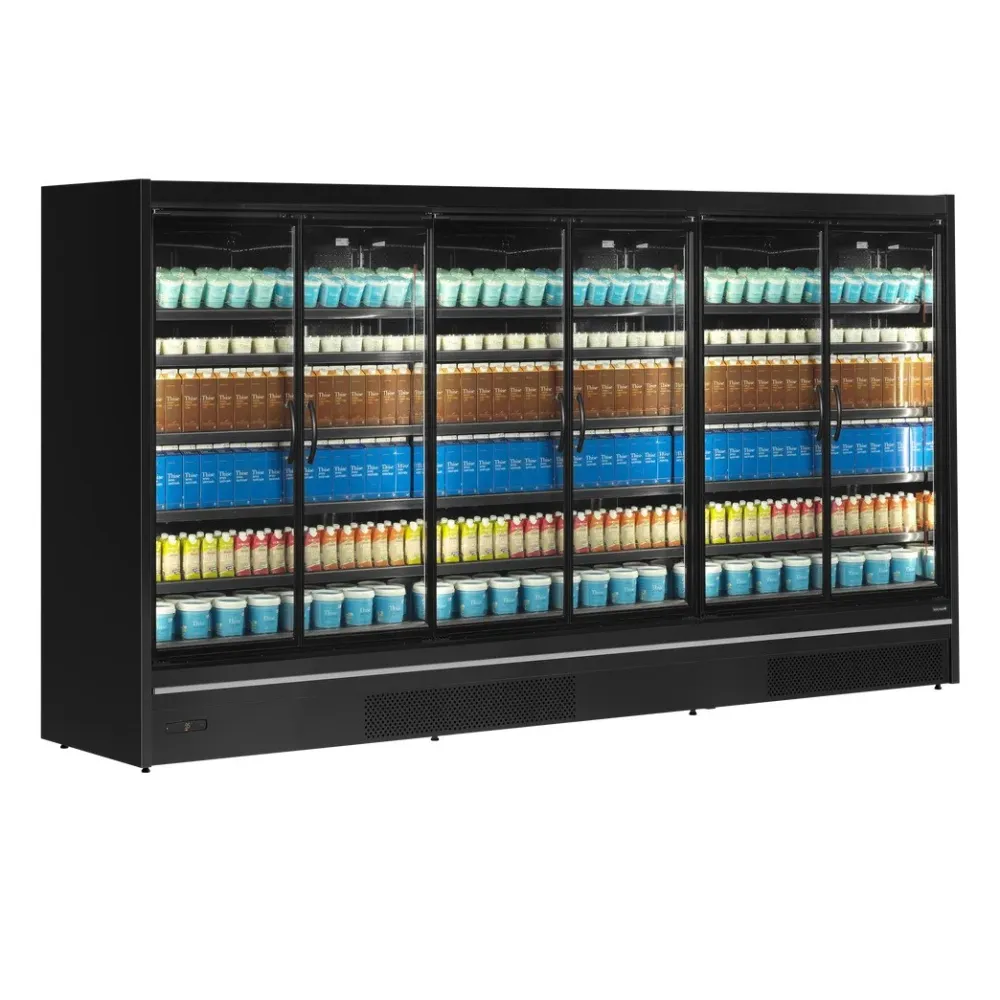

To use the MDCB3750HB, position the unit on a level floor near a suitable power supply. Load the fifteen adjustable shelves with chilled goods—dairy, packaged meats, drinks or prepared salads—leaving space between items for air circulation. Set the digital controller to the desired temperature between -1 °C and +5 °C. The Bluetooth connection allows remote monitoring and HACCP data export, so temperature logs can be recorded without opening the doors. LED lighting activates automatically, illuminating the shelves from above and vertically along the sides to highlight the products. When multiple units are installed side by side, they can be linked into a continuous display line, sharing the same temperature control and lighting programme.

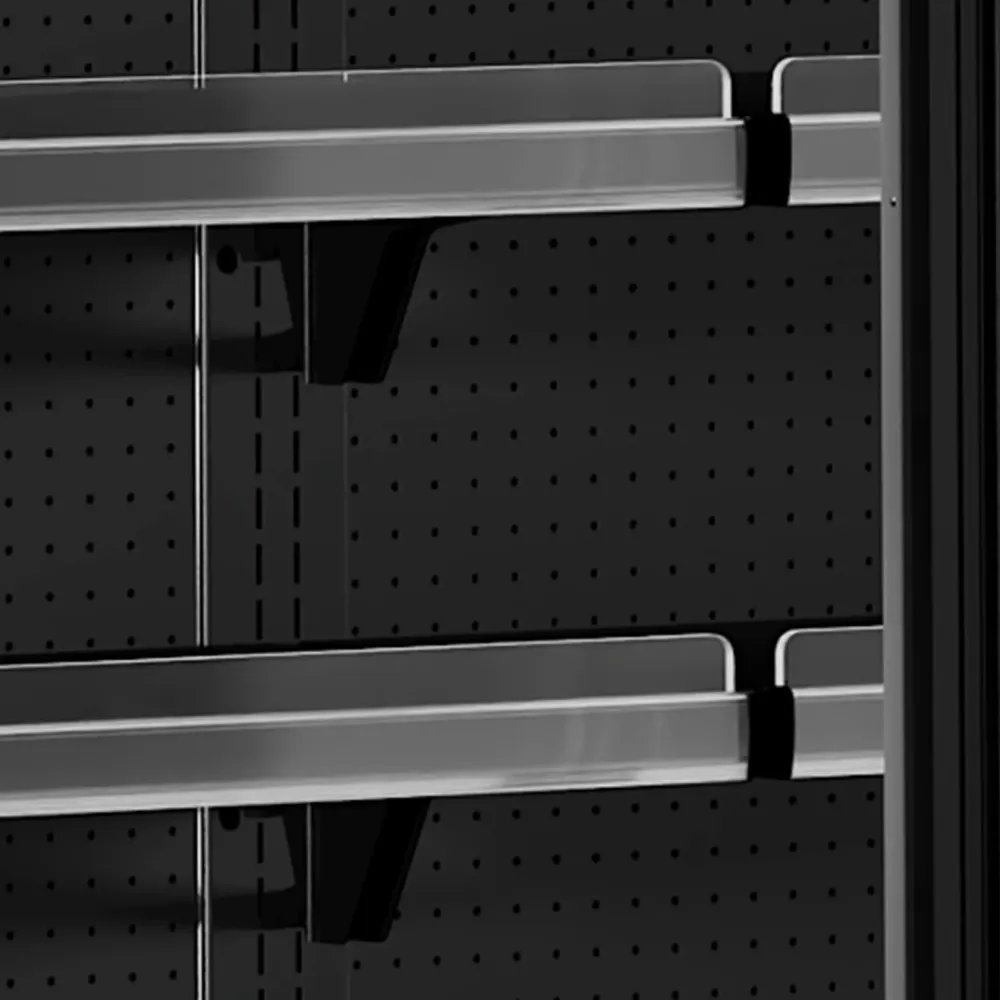

The cabinet is constructed with 40 mm thick side panels lined with mirrored aluminium for insulation and reflection. The exterior and interior surfaces are finished in stainless steel, including protective bumpers along the base. Each shelf measures 1250 mm by 600 mm and can be tilted at 10° or 20° to improve product presentation. Acrylic price-rail strips and retaining lips are included to keep items in place. The refrigeration system uses R290 refrigerant, a hydrocarbon with low environmental impact, and a variable-speed compressor that adjusts cooling output to match demand, reducing energy consumption.

A power rating of 1.7 kW indicates the load the unit places on the electrical circuit; it requires a 220-240 V single-phase supply. The gross volume of 3686 litres and net capacity of 3285 litres provide ample space for high-turnover chilled goods, while the 3830 mm width allows the cooler to serve as a central display in larger retail or catering environments. The 760 kg weight means the unit must be moved with a pallet truck or similar equipment. The temperature range of -1 °C to +5 °C is suitable for fresh meats, dairy, and ready-to-eat products that require chilled storage but not freezing.

Cleaning involves wiping the stainless steel surfaces with a mild detergent solution, avoiding abrasive pads that could scratch the finish. The shelves and acrylic retaining strips can be removed for thorough cleaning. The LED lighting units are sealed and require no maintenance beyond occasional dusting. The digital controller's Bluetooth and NFC functions allow firmware updates and temperature log downloads without disassembly.

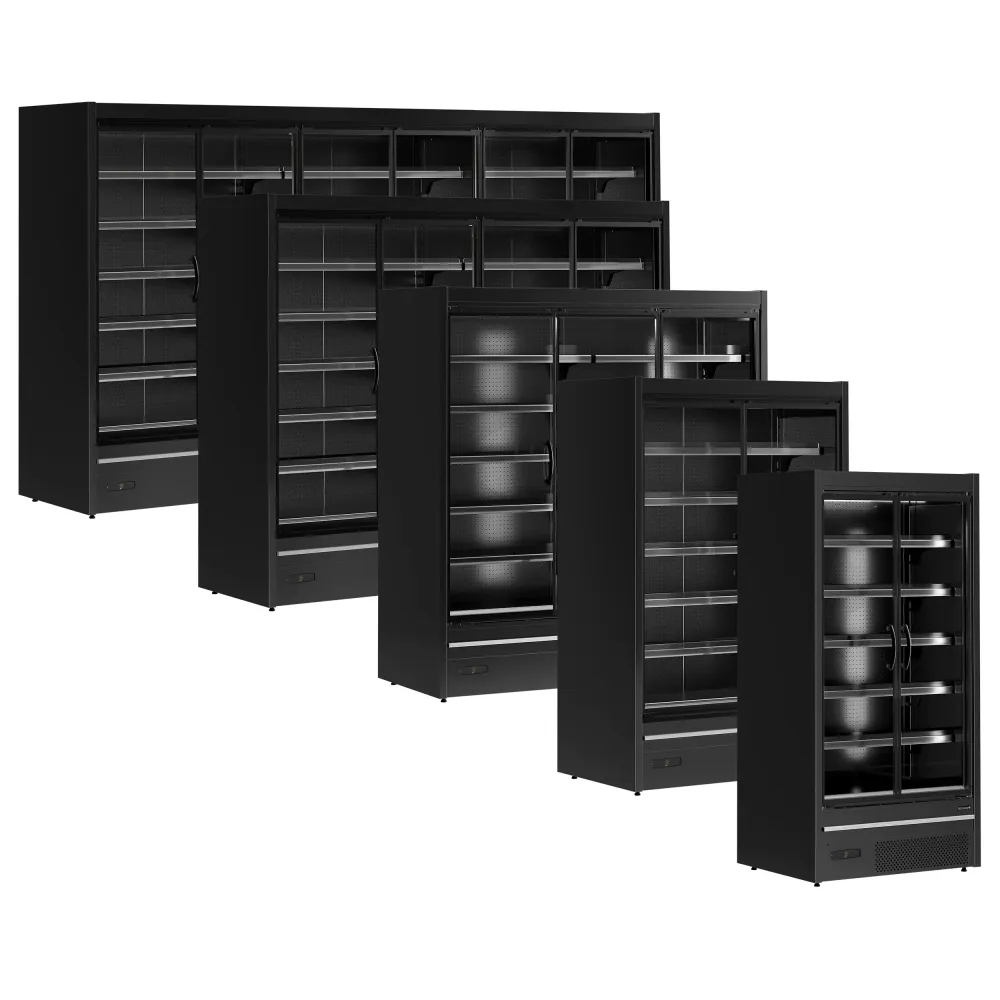

The MDCB3750HB is classified as energy efficiency class B and temperature class 3M1, confirming its suitability for professional chilled storage. Multiple units can be connected in a continuous line to create a seamless display across a larger area. The catalogue places this model in the professional refrigeration section, specifically under multideck display coolers for retail and catering use.
