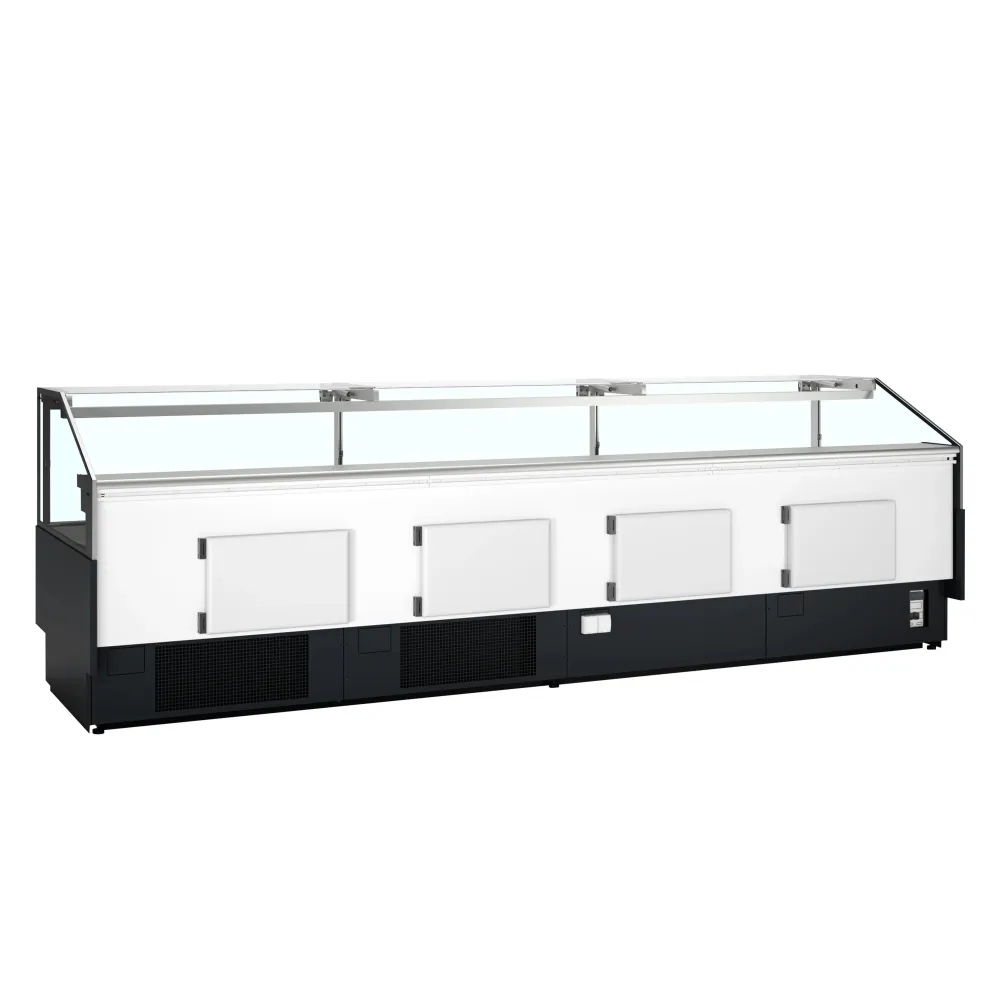

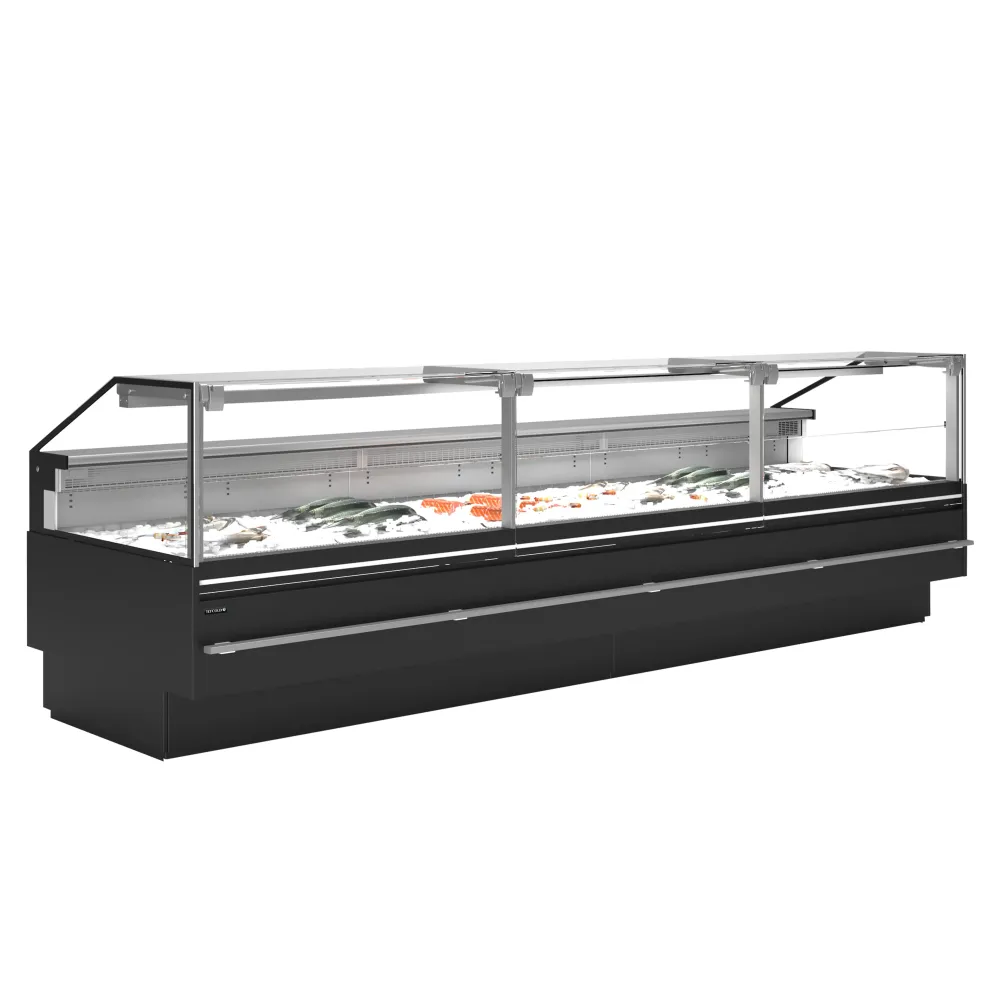

TEFCOLD SOCA-F37590B Black Refrigerator Showcase for Delicatessen Display

A refrigerated showcase keeps perishable goods chilled while presenting them under glass to customers. A compressor circulates refrigerant through evaporator coils mounted behind the display area. A fan draws air across the coils, cooling it before it is pushed gently through the cabinet. This continuous air movement maintains a uniform temperature from top to bottom and front to back, preventing warm spots that could spoil food.

The operator loads the 50 mm deep stainless steel shelf with meat, cheese, ready meals or other delicacies. The front glass lifts upwards for easy restocking and cleaning. Once the glass is closed, the heated glazing prevents condensation, keeping the view clear. The wide rear doors open to reveal the main storage compartment, which accepts standard E2 crates for bulk storage behind the display.

The interior is constructed entirely of stainless steel, including the rear shelf and the 50 mm display surface. The exterior finish is black. Two 220 V power sockets on the rear panel allow cash registers, scales or other retail equipment to be plugged in without additional trailing cables across the worktop.

A 550 litre volume provides space for several days' stock in a single unit. The temperature range of -1 °C to +5 °C suits fresh meat, dairy, prepared salads and chilled desserts. A 1.0 kW compressor draws 14.4 kWh over 24 hours, reflecting the load needed to maintain temperature in a ventilated cabinet with a large glass front. The 220-240 V, 50 Hz supply matches standard UK commercial circuits.

The 3798 mm length creates a continuous run of refrigerated display along the shop floor, while the 1130 mm depth fits within a typical worktop footprint. At 470 kg, the unit is moved on a pallet truck or sack barrow; once in place it remains stationary. A single shelf inside the display area leaves the rest of the volume free for taller items or bulk storage behind the glass.

Cleaning involves wiping the stainless steel interior and display surface with a damp cloth and mild detergent. The front glass can be lifted to reach the underside. The fan and evaporator coils require occasional vacuuming to remove dust that would reduce cooling efficiency. The refrigerant is R290, supplied in two 150 g charges, and should only be handled by a qualified technician.

The SOCA-F37590B is a single model in black with ventilated cooling and Energy Class F.
