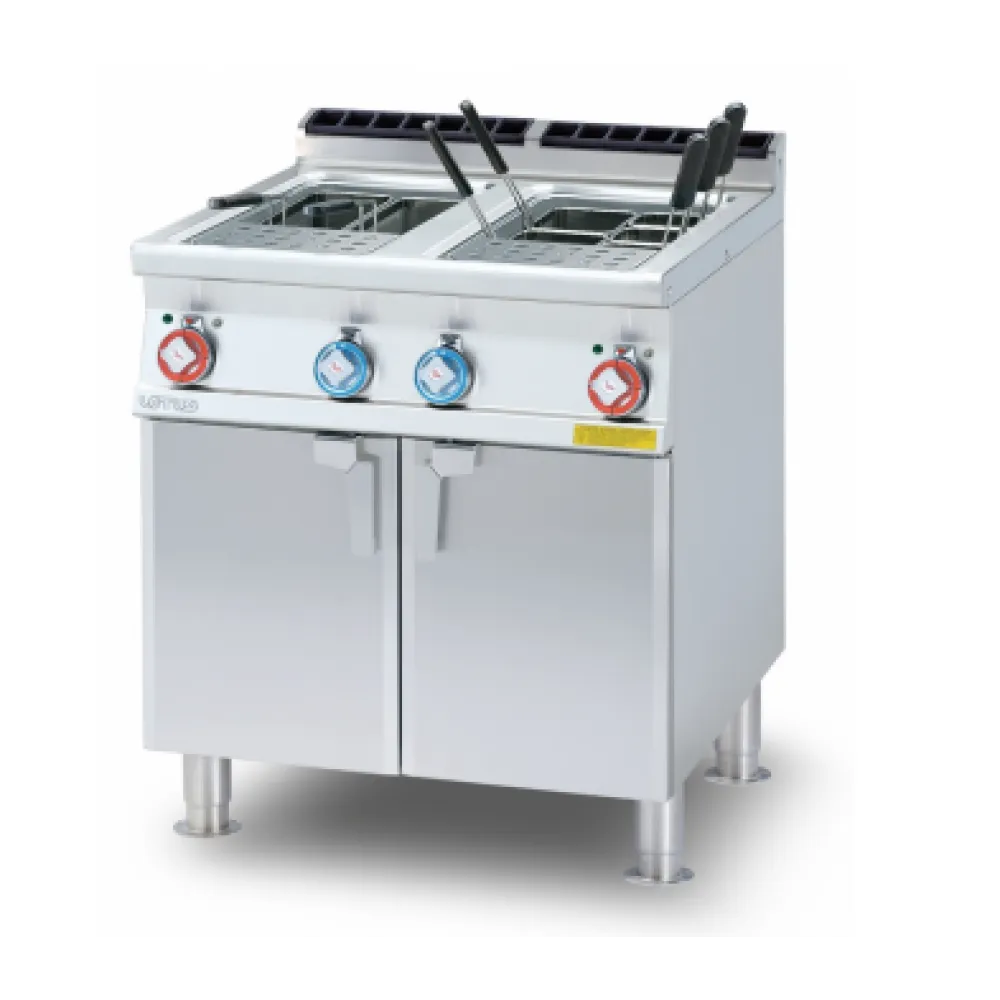

LOTUS Electric Pasta Cooker 25+25 L CP-78ETX

The LOTUS CP-78ETX is an electric pasta cooking machine designed for commercial use. This unit features two independent tanks, each with a 25-litre capacity, allowing for simultaneous cooking of different pasta types or batches.

Pasta cooking machines operate by heating water within dedicated tanks using integrated high-performance heating elements. The water is maintained at a consistent temperature, and perforated baskets are lowered into the boiling water to cook the pasta. The CP-78ETX includes features such as integrated drain taps for easy water changes and an overflow safety valve to prevent overfilling. Automatic water drainage further simplifies operation and maintenance.

To use the machine, operators fill the tanks with water and bring it to a boil using the control switch. The 4-position control switch manages the heating functions. A safety thermostat provides an additional layer of protection. Once the pasta is cooked, it is removed using the baskets.

Constructed from 18/10 AISI 304 stainless steel with a Scotch-Brite satin finish, the machine offers durability. The worktop is 1 mm thick with rounded edges for ease of cleaning. The tanks are made from AISI 316 stainless steel, chosen for its resistance to corrosion from hot water and starch. Chrome-plated components are used throughout. The control knobs are rated IPX5 for water resistance, protecting them from splashes.

Each tank measures 30.5 cm in length, 33.5 cm in width, and 30 cm in height. The machine has a total power consumption of 15.6 kW and operates on a 400 V, 3-phase electrical supply. Its dimensions are 800 mm in length, 705 mm in width, and 900 mm in height, with a weight of 82 kg. Serviceable components are accessible via the front control panel, and rotating heating elements are incorporated to aid in cleaning the tanks.

The catalogue lists this pasta cooker for use on ships.
