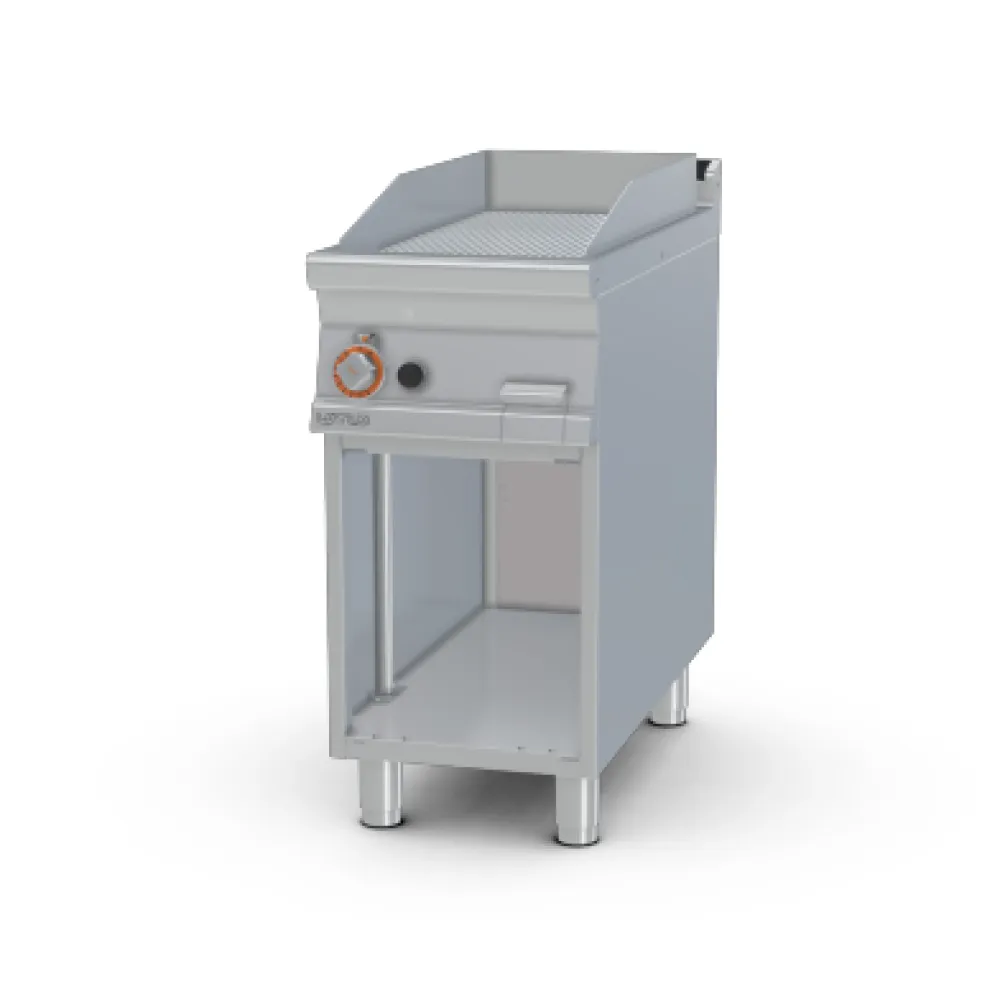

LOTUS Gas Fry-Top Ribbed on Open Cabinet 90 FTR-94G

A ribbed gas fry-top concentrates heat along the raised ridges, searing food quickly while allowing fat and juices to drain into the channels between. The gas burner beneath the solid steel plate heats the metal evenly, and the ridges transfer that heat directly to the food, giving the char and texture professional kitchens require. Because the plate is ribbed, the contact area is smaller than on a flat top, so the heat is more intense where it touches, speeding the cooking process without scorching the rest of the surface.

The operator lights the pilot with the built-in piezo ignition, then sets the thermostatic control to the desired temperature between 50 °C and 300 °C. Once the plate reaches the set point, the thermocouple maintains it automatically. Food is placed directly on the ribbed surface; the ridges keep it slightly elevated, letting fat run off and preventing sticking. After cooking, the fat collects in the large-capacity removable drawer beneath the plate, ready for emptying and cleaning.

The cooking plate measures 36 cm by 68 cm and is made of 2 mm thick 18/10 AISI 304 stainless steel with a Scotch-Brite satin finish. The edges are rounded, and the back panel and control knobs are chrome-plated. The control handles are water-resistant to IPX5, protecting the gas valves from splashes. Exhaust gases are vented through the rear flue, keeping the kitchen air clear.

The unit stands on adjustable legs for stable installation on uneven floors. The open cabinet below provides storage for kitchen tools and accessories. A gas conversion kit is included for adapting the appliance to different gas types, and a single end panel (TPA-9) is supplied to finish the installation.

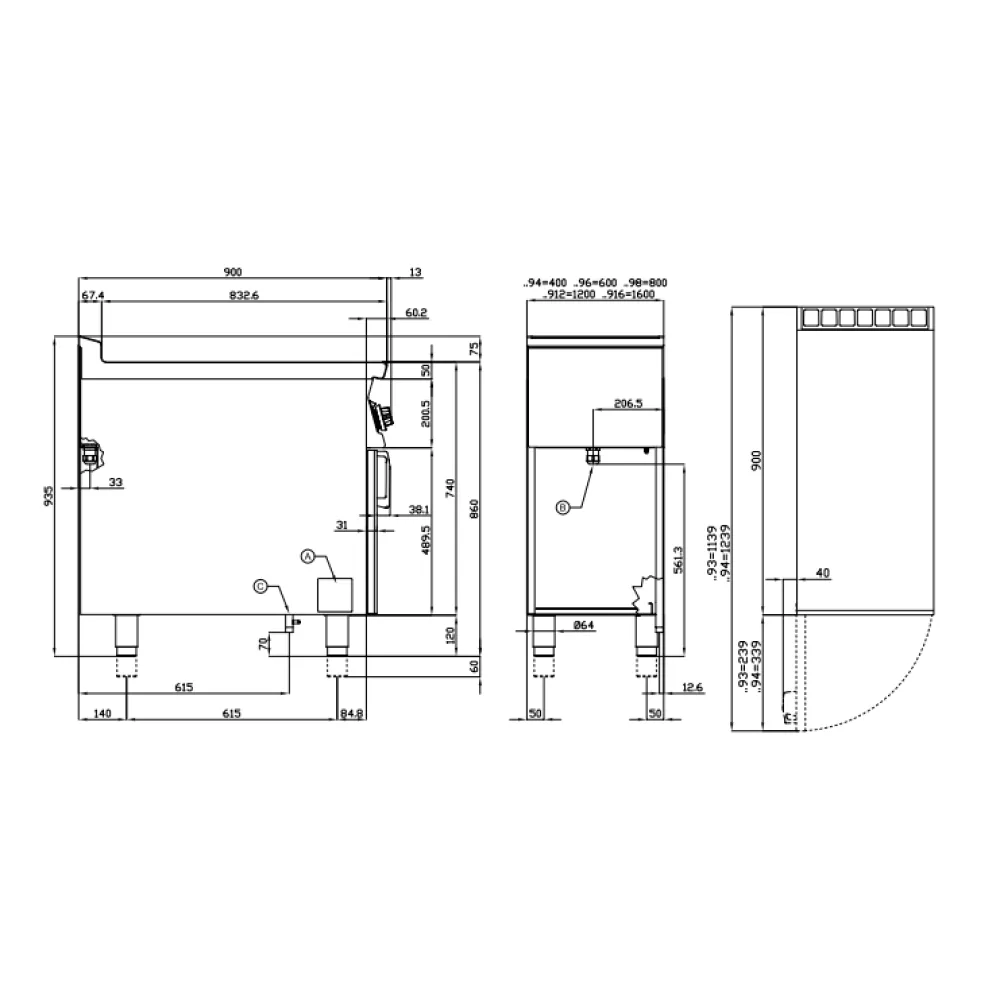

The 9 kW power rating indicates the load on the gas supply, suitable for a commercial kitchen with adequate gas pressure. The 81 kg weight means the unit is moved with a trolley or two people, and the 400 mm depth, 900 mm width and 900 mm height define the space it occupies on the worktop or floor.

Cleaning is straightforward: the front control panel removes for access to the internal components, and the fat collection drawer slides out for emptying and washing. The stainless steel surface can be wiped down after each service, and the Scotch-Brite finish resists scratches and maintains appearance over time.

This model is part of the LOTUS 90 cm range of gas fry-tops, designed for professional catering environments.
