Technical data
| Attributes | |
| ARTICLE | 08270855 |
| POWER | 19,0 kW (16.320kcal/h); 0,07 kW (electricity) |
| SIZE L/W/H | 800x705x900 mm |
| VOLTAGE | 230V~50/60 Hz |
| VOLUME | 103 kg |
| Model | CPA-78G |
| CAPACITY | 25+25L |
| NOTES | Combinations:1-1/1; 2-1/2, 4-1/4; 6-1/6; 1/2+1/6 x3 |

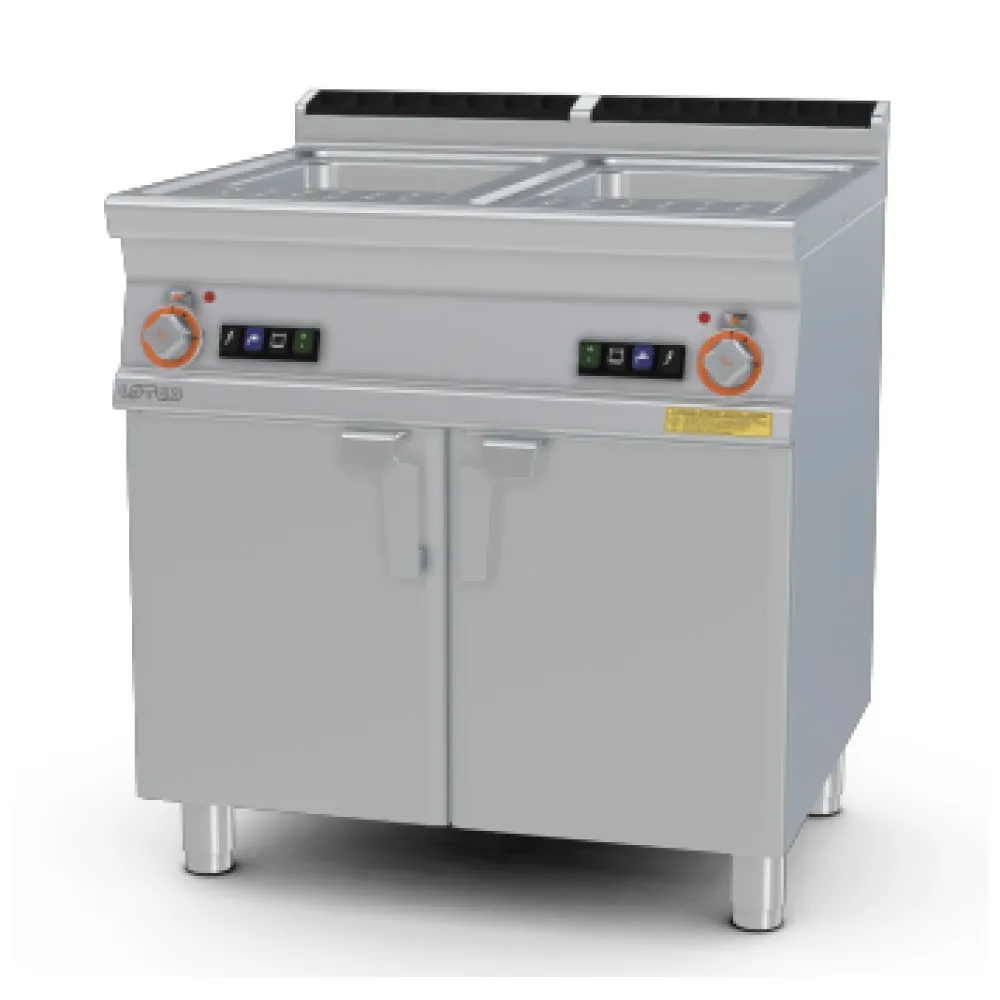

Professional gas pasta cooker with an automatic water filling system, designed for preparing various types of pasta and other products. The built-in water level sensor automatically maintains the optimum water level in the tank, ensuring continuous operation without manual water refilling. The appliance is equipped with an overflow system and a floor drain. Baskets are not included.
This gas pasta cooker features two separate vats, each with its own burner for independent temperature control. Heat is distributed evenly through the base, ensuring consistent boiling without manual stirring. The dual chambers enable simultaneous cooking of different pasta types or batch preparation without cross-contamination of flavours or starches.
The unit connects to the gas supply and fills automatically via a built-in tap, with sensors maintaining the correct water level. An electric ignition lights the pilot, followed by the main burners, which are adjustable for precise heat. Pasta is placed in perforated baskets—available separately in various sizes—that rest on the vat rims, keeping contents submerged. Once cooked, the baskets are lifted, allowing water to drain through the perforations. A floor-level drain and overflow system simplifies emptying without moving the appliance.
Constructed entirely from 18/10 CrNi AISI 304 stainless steel, the cooking vats are made from AISI 316 for enhanced corrosion resistance. The worktop is 2 mm thick with a satin finish, rounded edges, and chrome-plated details, alongside a rear protective panel for durability and easy cleaning. Waterproof IPX5-rated control knobs are positioned on the front panel, which detaches for access to internal components.

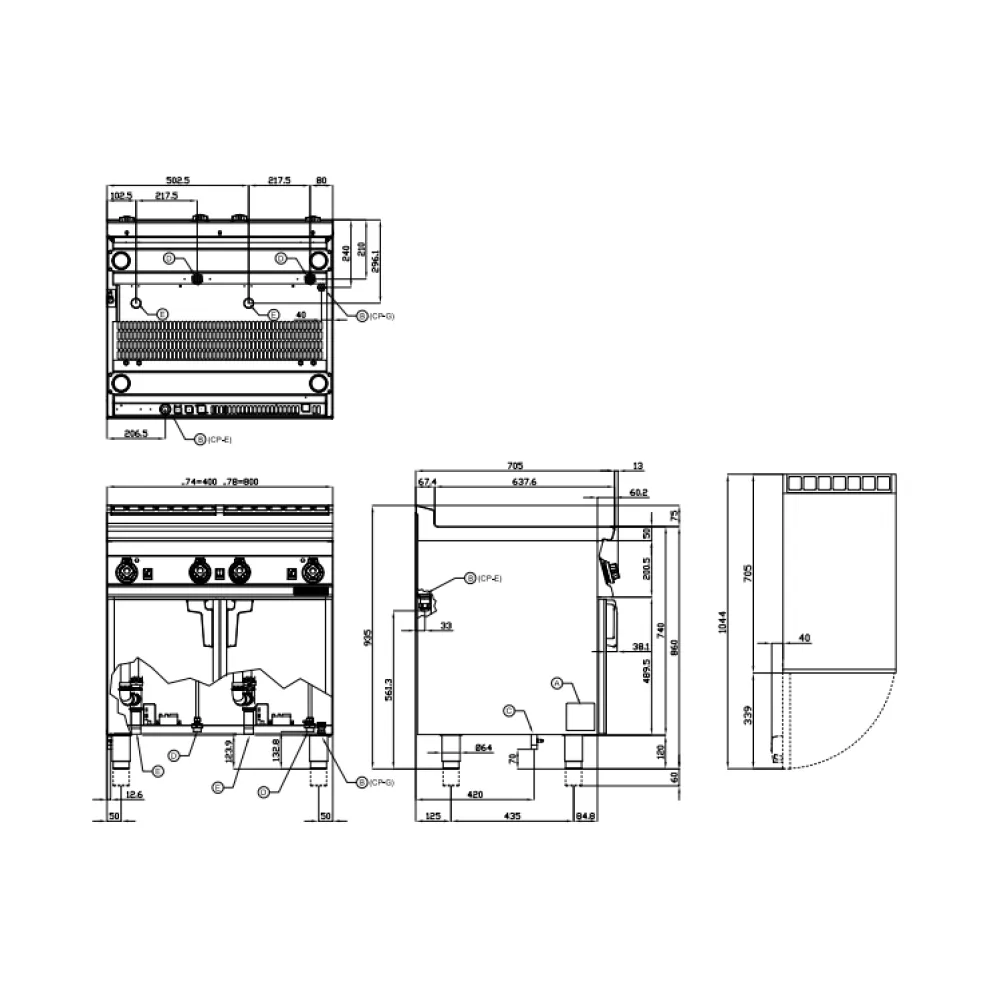

The main burner provides 19.0 kW for rapid temperature recovery between batches, while a 0.07 kW electric supply powers the ignition and pilot light. Operating on 230 V single-phase, the unit fits standard commercial kitchen setups. Its dimensions of 800 x 705 x 900 mm ensure a comfortable working height, and the 103 kg weight provides stability. Adjustable legs accommodate uneven floors.
Maintenance is simple: removing the front panel grants access to burners, sensors, and drain channels, while the vats lift out for thorough cleaning. The satin-finished worktop resists scratches and stains. A supplied conversion kit allows operation on natural gas or LPG, and adjustable legs ensure safe installation.
The CPA-78G supports multiple configurations, including single or dual 25 L vats, or combinations as specified in the entry, allowing flexibility to match batch sizes to demand without energy or water waste.
